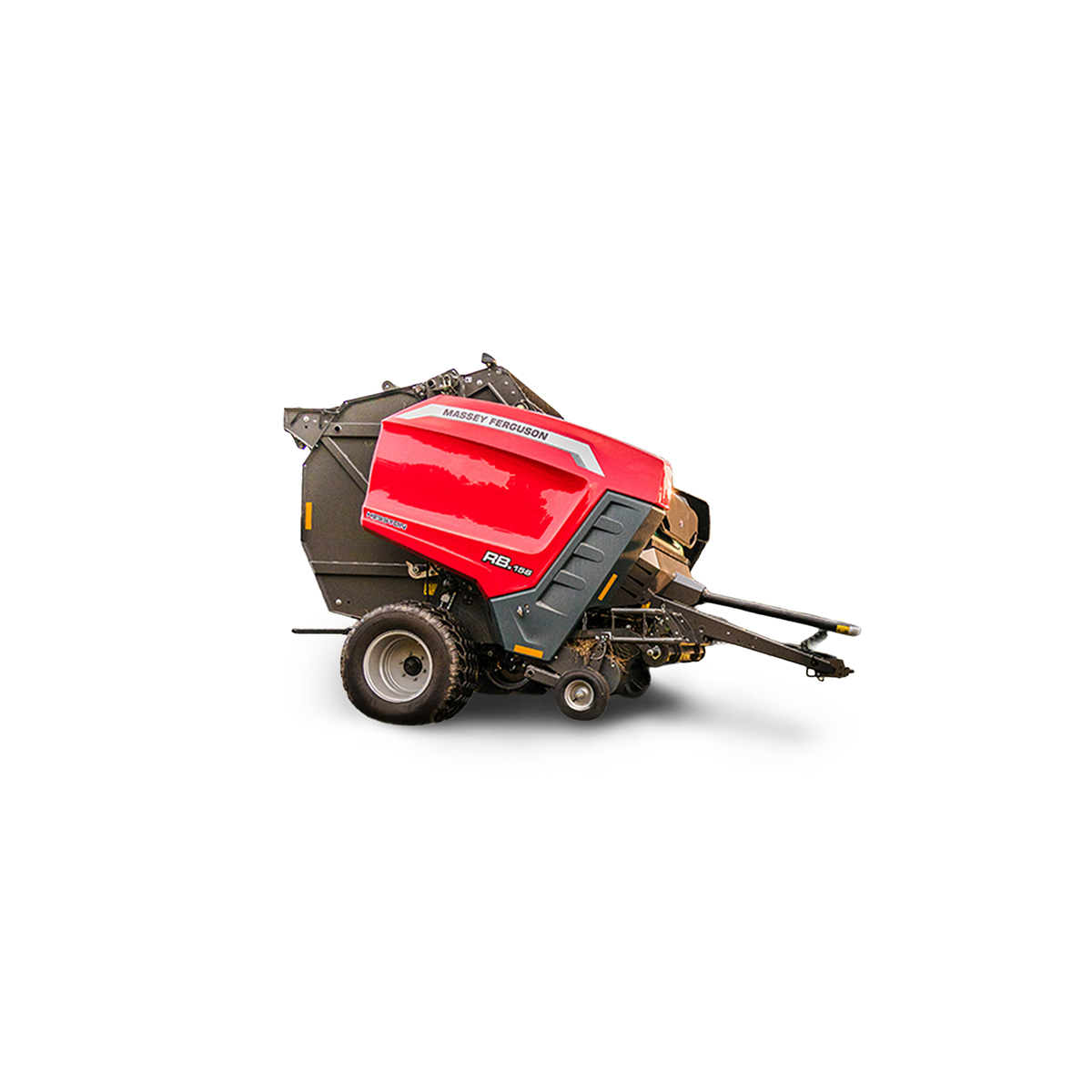

Massey Ferguson 1 Series Round Baler
GET A QUOTE
More Complete Camless Pick-Up
The RB Series features five tine bars with teeth spaced just 2.5 inches apart, allowing for a far more complete capture of crop on the field. A crop press roller is positioned in front of the pickup to enhance crop feeding into the chamber.
Chopping made efficient
Two sets of XtraCut™ hydraulically operated knife banks can be controlled or disengaged from the tractor cab. Select zero, eight, nine or all 17 knives to attain forage cuts as small as 2.65 inches in length.
More Operator Control
The E-link Pro™ touchscreen monitor tracks bale formation and allows in-cab control of cutter engagement and knife group selection. In addition, the baler’s ISOBUS design allows the use of any compatible tractor monitor for baler monitoring and control.
| MODEL | BALE SIZE (FT) | CHAMBER WIDTH (IN) | CHAMBER HEIGHT (IN) | PICKUP WIDTH (IN) | MINIMUM PTO HORSEPOWER | HYDRAULIC REQUIREMENTS | APPROX. WEIGHT (LBS) |
|---|---|---|---|---|---|---|---|
| RB.146 | 4 x 6 | 48.4 | 72 | 88.5 | 80 | 2 DA — Standard 3 DA — W/OPT HYD FLOOR | 7,500 |
| RB.156 | 5 x 6 | 61.5 | 72 | 94.5 | 100 | 2 DA — Standard 3 DA — W/OPT HYD FLOOR | 8,300 |
