A LOOK AT THE HORSCH AVATAR 40 SD

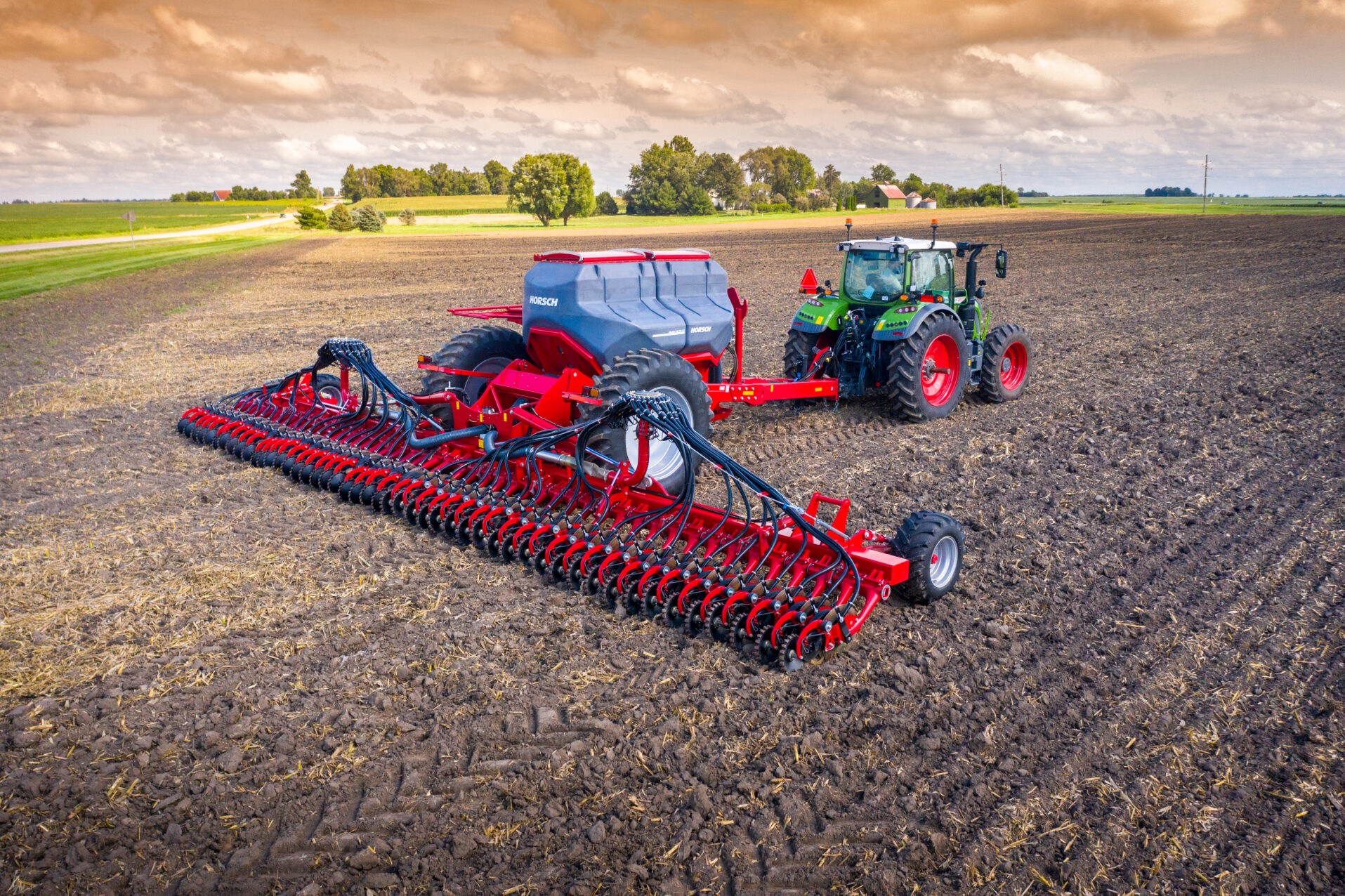

HORSCH AVATAR AIR SEEDER
The Horsch Avatar is ideal for seeding in many different situations due to the individually depth-controlled single disc opener and the 10″ row spacing. It is optimum for no-till seeding conditioners but can also be used in min-till and field conditions. Due to the robust design and SingleDisc opener system, operational speeds of up to 9 mph can be achieved pending field conditions. Choose from the Horsch Avatar 40 SD, 40LC, 60 SD, 60 MD, or 66-10TD!
REQUEST PRICING OR SCHEDULE A DEMO TODAY!
HORSCH AVATAR SPECIFICATIONS
| MODEL | 40SD CLASSIC | 40SD GEN II | 40LC | 60SD | 60MD | 66TD |
|---|---|---|---|---|---|---|
| TRANSPORT WIDTH | 11'6" | 11'6" | 9'9" | 14' / 17'5" | 15'8"/16'9" | 17' 8" |
| TRANSPORT HEIGHT | 12'6" | 12'6" | 13'1" | 12' 6" | 13'1" | 14'6" |
| WORKING WIDTH | 40' | 40' | 40' | 60' | 60 | 66' 8" |
| WORKING SPEED (MPH) | 3.5-9 | 3.5-9 | 3.5-9 | 3.5-9 | 3.5-9 | 3.5-9 |
| ACRES/HOUR | 40 | 40 | 65 | 65 | 65 | 70 |
| TOTAL WEIGHT (EMPTY) LBS | 24.800 | 24,800 | - | 33,100 | 44,600 | 70,000 |
| DUAL TANK | AVAILABLE | AVAILABLE | AVAILABLE | AVAILABLE | N/A | N/A |
| TRIPLE TANK | N/A | N/A | AVAILABLE | AVAILABLE | AVAILABLE | N/A |
| QUAD TANK | N/A | N/A | N/A | N/A | N/A | AVAILABLE |
| TANK CAPACITY (BU) | 166 | 166 | 270 | 240/306 | 350 | 890 |
| TANK LAYOUT (BU) | 83 + 83 | 83 + 83 | 130 + 45 + 95 | 120 + 120 opt + 66 | 140 + 140 + 70 | 420 + 230 + 130 + 90 |
| ROW SPACING | 10" | 10" | 10" / 8" | 10" | 10" | 10" |
| DOWNFORCE/ROW | 550 | 550 | 550 | 550 | 550 | 550 |
| NUMBER OF ROWS | 48 | 48 | 48 OR 60 | 72 | 72 | 80 |
| NUMBER OF SECTIONS | 2 | 2 | 2 | 2 | 4 | 8 |
| HYDRAULIC REMOTES | 3 | 3 | 3 | 3 | 3 | 4 OR 5 |
| OIL REQUIREMENTS | 25 | 25 | 25 | 30 | 30 | 70 OR 100 |
| OIL COOLER | AVAILABLE | AVAILABLE | AVAILABLE | AVAILABLE | AVAILABLE | AVAILABLE |
| TIRE SIZE WAGON | 520/85R42 | 520/85R42 | 580/70R38, 710/70R38, 900/60R32, 520/85R42 DUALS | 520/85R42 OR 520/75R46 DUALS | 710/70R38 OR 520/85R42 | 1250/35R46 OR 750/65R26 DUALS |
| TIRE SIZE TOOLBAR | 15/55-17 | 15/55-17 | DOUBLE SUPPORT WHEELS 10.8/75-15.3 | 15/55-20 | 550/60-22.5 | 710/40R22.5 |
| HP REQUIREMENT | 300 | 300 | 350 | 350 | 350 | 520 W/OUT BANDERS, 600+ W/BANDERS |
| SOFTWARE VERSION | E-MANAGER | E-MANAGER | E-MANAGER | E-MANAGER | I-MANAGER | I-MANAGER |
| PRIMARY LINE | 2" | 2" | 2" | 2" | 2" | 2" |
| SECONDARY LINE | 1" 1/4 | 1" 1/4 | 1" 1/4 | 1"1/4 | 1"1/4 | 1" 1/4 SEED 2" FERTILIZER |
FEATURES
-
A working width of
40' - 66' delivers precise seeding and maximum efficiency during planting season.
-
Dual Product Capacity
of 166, 355 or 870 bushels provides versatility for seeding multiple crops or apply fertilizer with seed in the furrow.
-
SingleDisc
technology delivers efficient seeding performance for both no-till and minimum-till operations.
-
Low Horsepower Requirements
thanks to its compact design and SingleDisc system that reduces soil movement.
-
Integrated weight transfer and distribution system
ensures even weight distribution across the toolbars and all openers.
3-YEAR STANDARD WARRANTY
A 3-Year Standard Warranty is included on all Horsch Avatars that are retailed after January 1, 2024 from Butler Machinery Company.
