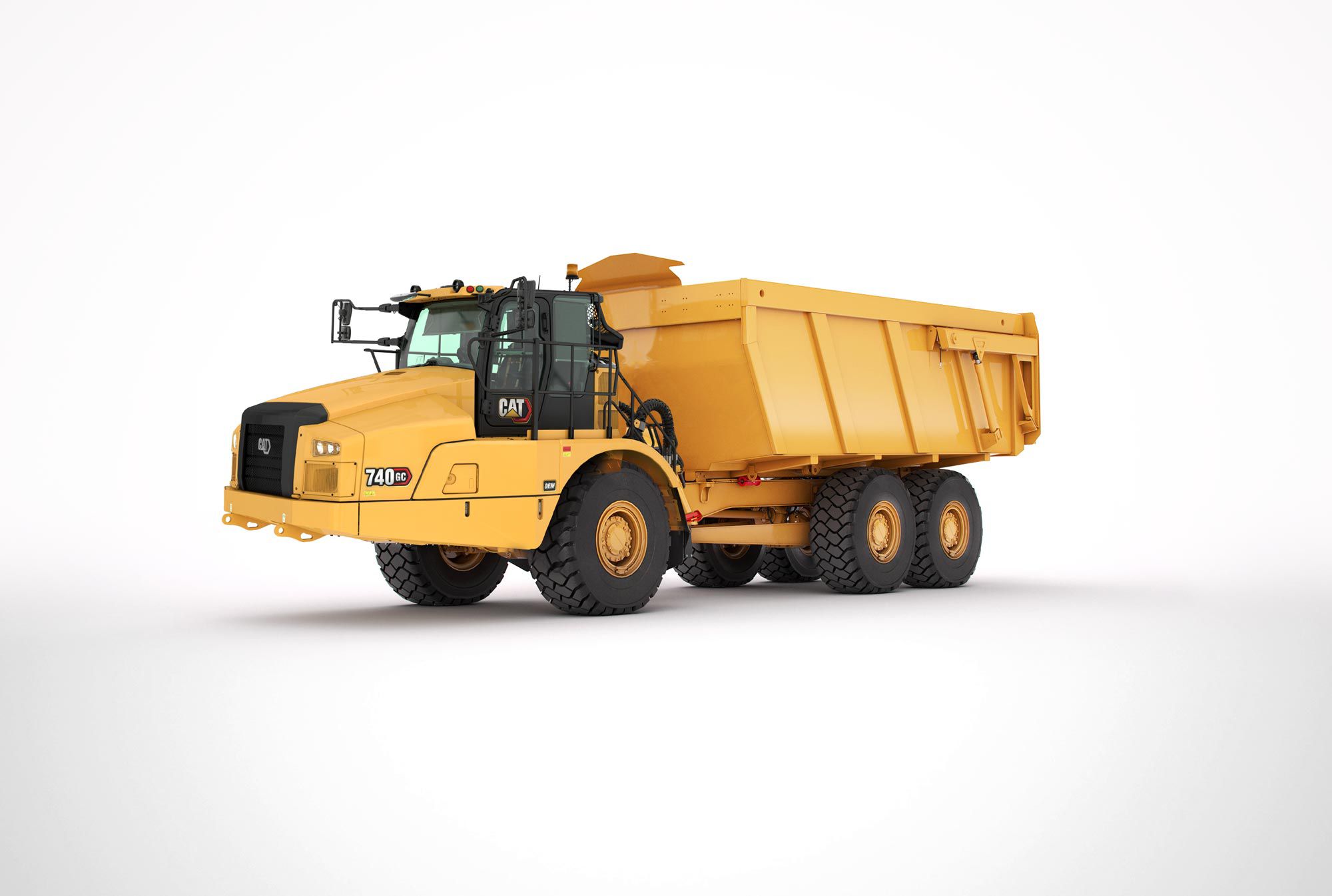

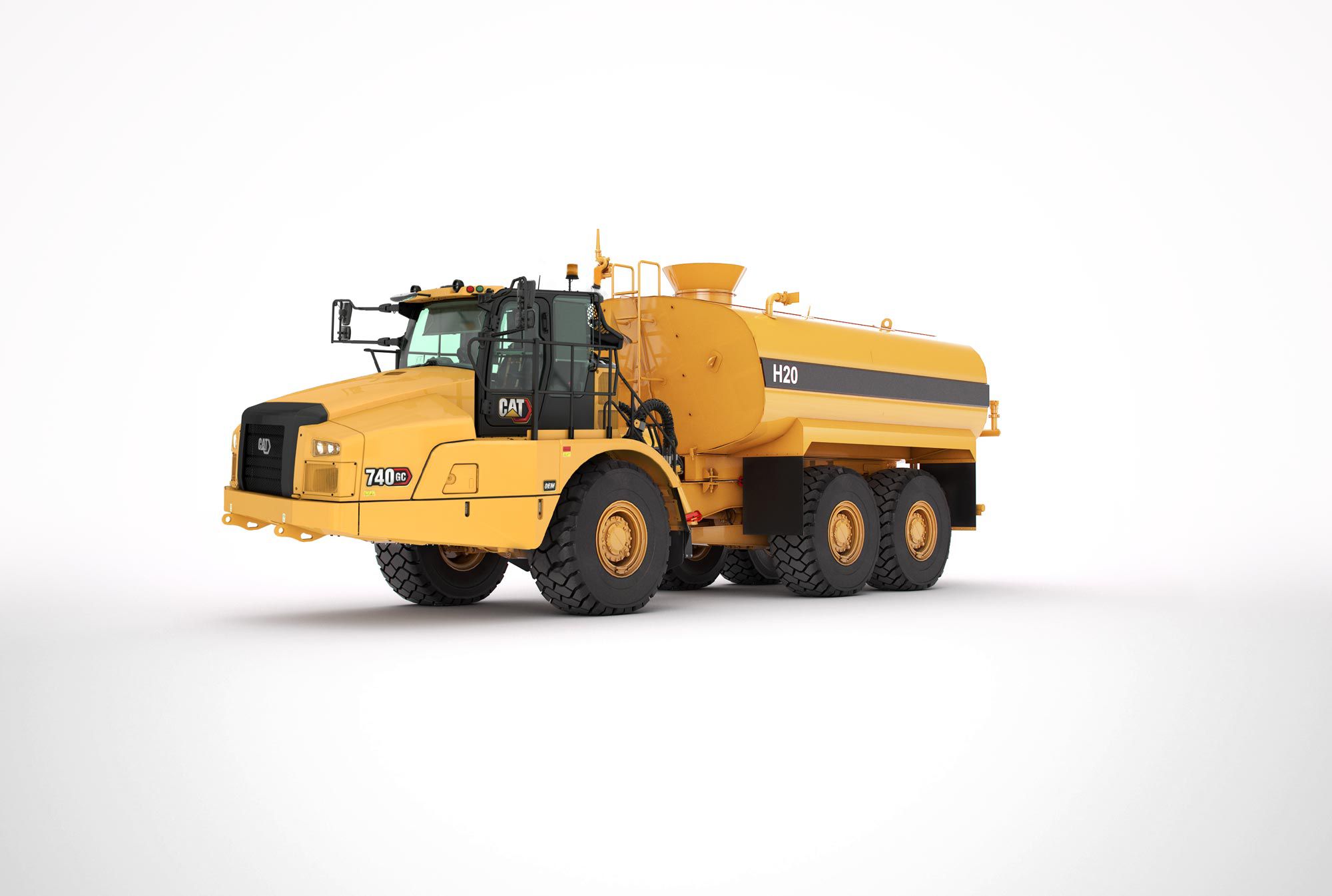

Engine
|
Bore
|
5.4 in
|
|
Displacement
|
926 in³
|
|
Engine Model
|
Cat® C15
|
|
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final
|
Cat® C15
|
|
Gross Power - SAE J1995:2014
|
452 hp
|
|
Net Power - ISO 14396
|
447 hp
|
|
Net Power - SAE J1349:2011
|
439 hp
|
|
No Engine De-rating Required Below
|
10000 ft
|
|
Peak Engine Torque Gross (SAE J1995)
|
1711 lb/ft
|
|
Peak Engine Torque Net (SAE J1349)
|
1670 lb/ft
|
|
Peak Engine Torque Speed
|
1200 r/min
|
|
Stroke
|
6.75 in
|
Wheel Base Length
|
Standard Wheel Base
|
162.4 in
|
Weights
|
Rated Payload
|
49.2 ton (US)
|
Transmission
|
Forward - 1
|
4 mile/h
|
|
Forward - 2
|
5.3 mile/h
|
|
Forward - 3
|
7.3 mile/h
|
|
Forward - 4
|
9.2 mile/h
|
|
Forward - 5
|
12.2 mile/h
|
|
Forward - 6
|
14.9 mile/h
|
|
Forward - 7
|
20.6 mile/h
|
|
Forward - 8
|
24.7 mile/h
|
|
Forward - 9
|
35.7 mile/h
|
|
Reverse - 1
|
4.2 mile/h
|
|
Reverse - 2
|
9.8 mile/h
|
Service Refill Capacities
|
Axles - Each
|
15.8 gal (US)
|
|
Brake Cooling Tank
|
17.7 gal (US)
|
|
Cooling System
|
23.7 gal (US)
|
|
DEF Tank
|
25 gal (US)
|
|
Engine Crankcase
|
13.7 gal (US)
|
|
Final Drive - Each
|
1.3 gal (US)
|
|
Fuel Tank
|
143.5 gal (US)
|
|
Steering/Hoist Hydraulic System
|
36.9 gal (US)
|
|
Transmission - OTG
|
19.8 gal (US)
|
Standards
|
Brakes
|
ISO 3450:2011
|
|
Cab - FOPS
|
ISO 3449:2005 Level II
|
|
Cab - ROPS
|
ISO 3471:2008
|
|
Steering
|
ISO 5010:2019
|
Steering
|
Lock to Lock
|
4.75 seconds at 60 rpm
|
Turning Circle
|
Note
|
Dimensions are for machines equipped with 29.5 R25 tires.
|
|
Turning Dimensions - Aisle Width
|
220 in
|
|
Turning Dimensions - Clearance Radius
|
330 in
|
|
Turning Dimensions - Inside Radius
|
156 in
|
|
Turning Dimensions - SAE Turning Radius
|
303 in
|
|
Turning Dimensions - Steer Angle - Left/Right
|
45°
|
