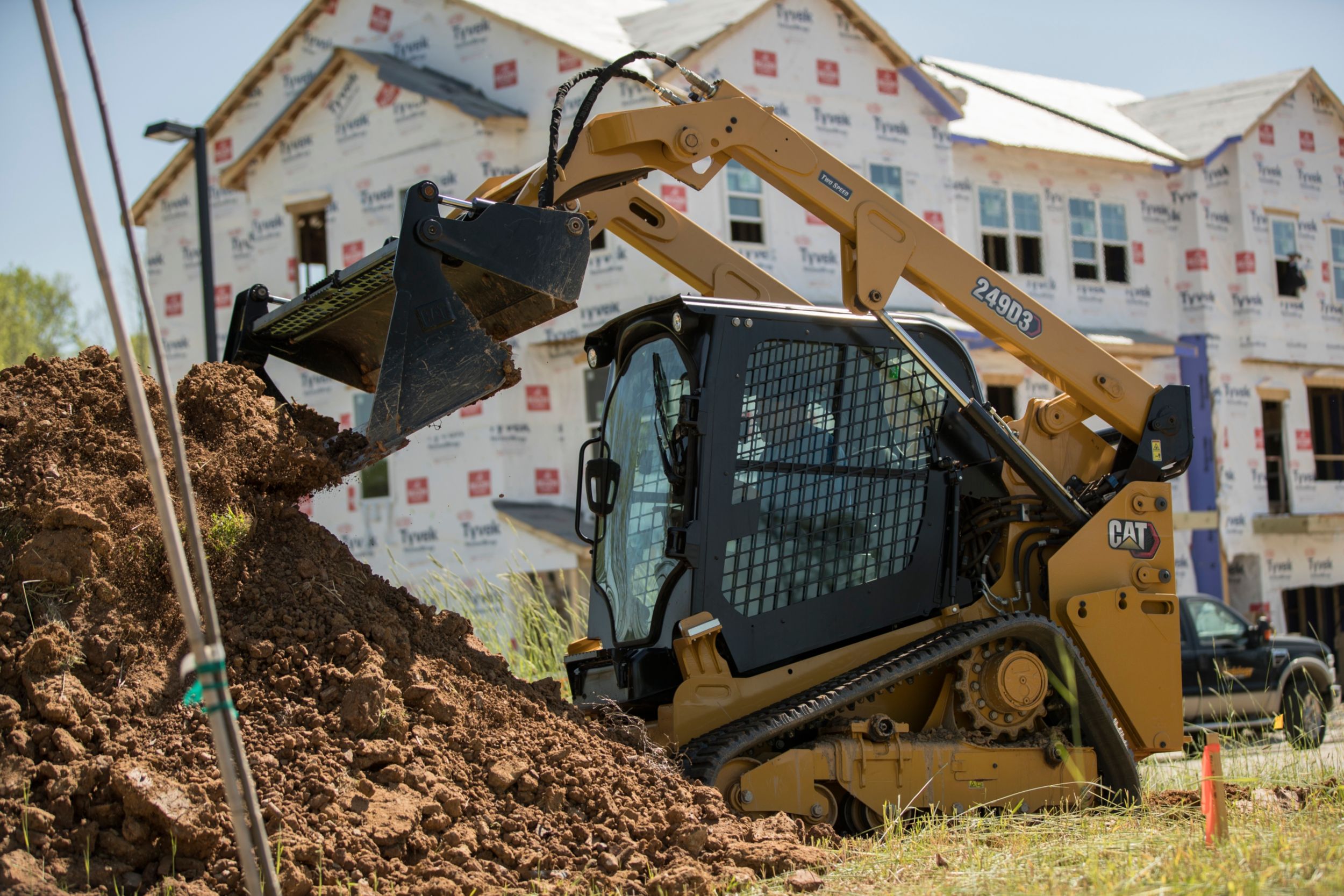

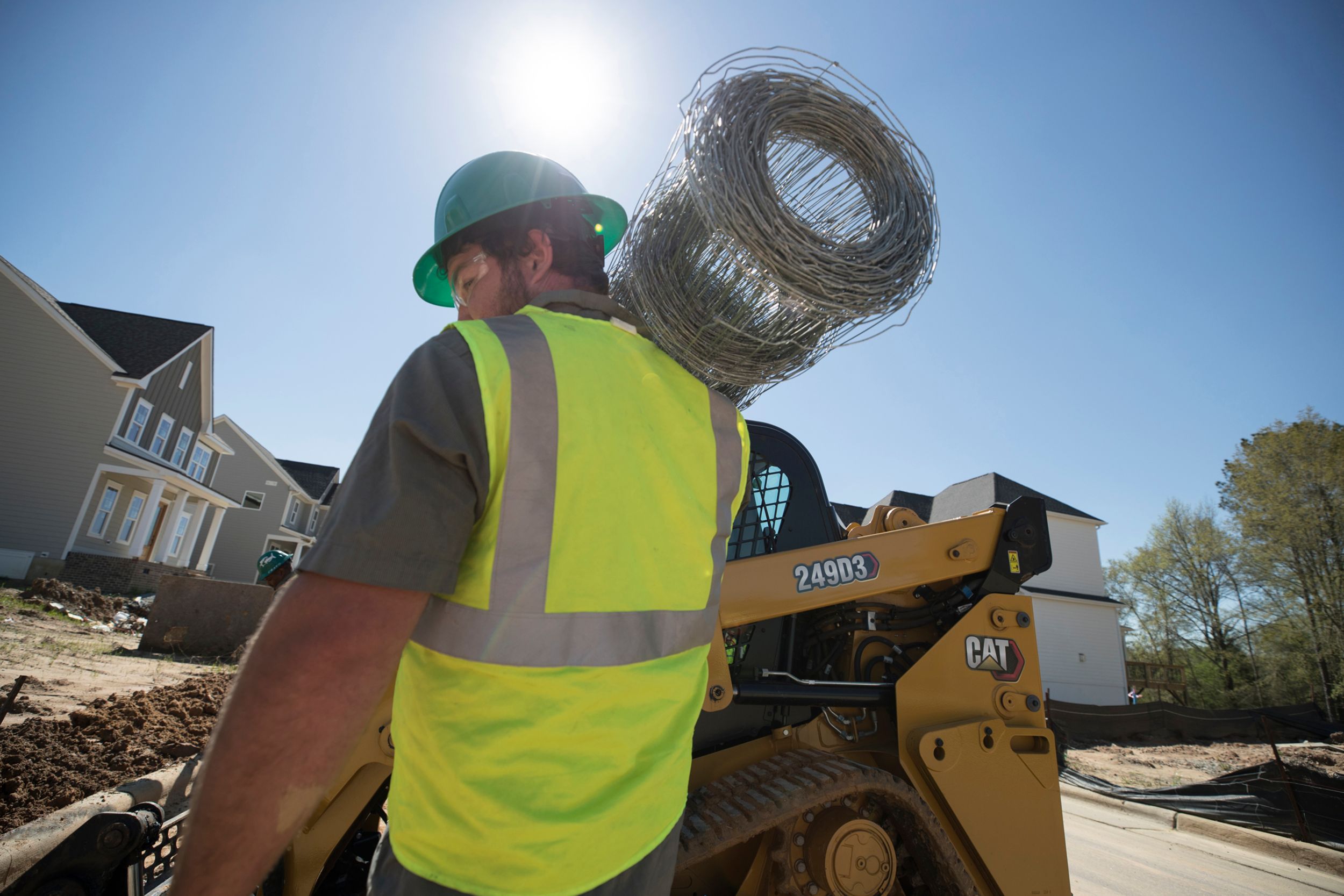

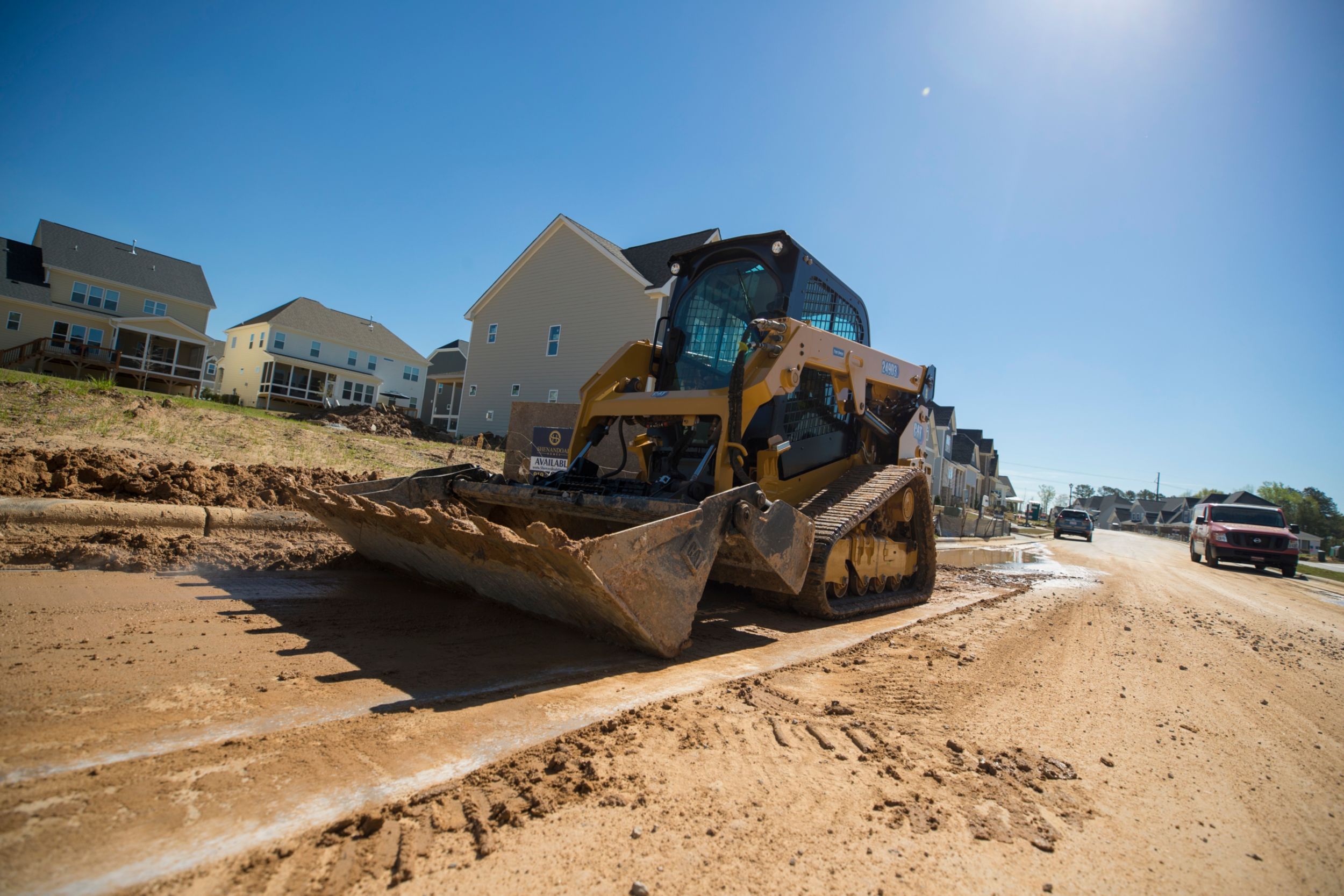

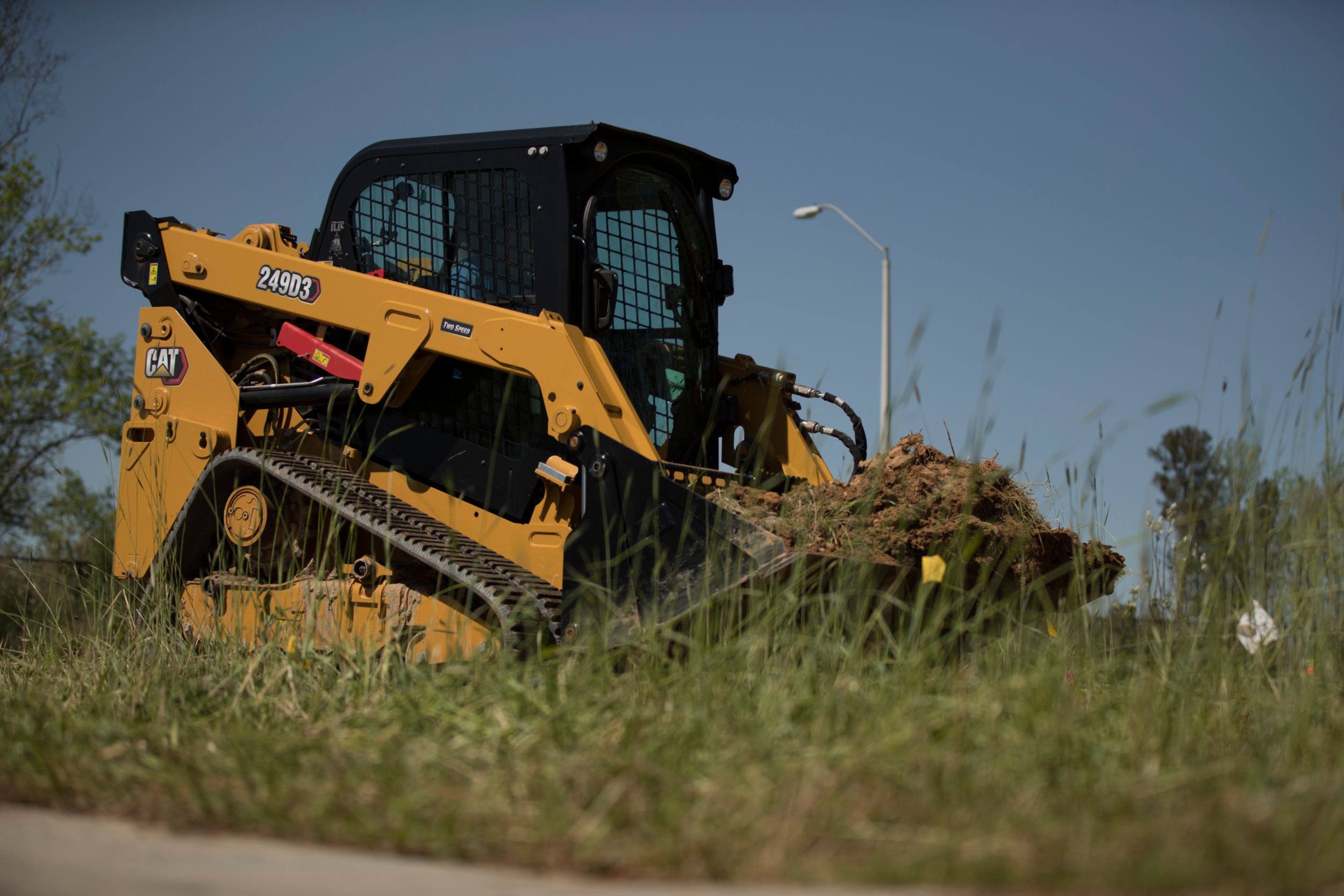

Get a quote249D3 Compact Track Loader
Comfortable. Performance. Smart.
More Comfort – More Performance – More Versatility
-
15% Additional Space For More Operator Comfort
•Redesigned, More Comfortable Cab
•Wider opening door for easier machine entry -
PERFORMANCE
•Improved Performance-Tuned Suspension
•Customer Driven Enhancements to Fuel System and Drive Train -
SMART
•Providing the Next Level Machine and Tool Compatibility
•Integrated SMART technology to automate complex attachments – INDUSTRY FIRSTS
·Attachment recognition
·Tailors controls
·Grade Assist
Engine
Bore | 3.3 in |
Displacement | 134.3 in³ |
Engine Model | Cat C2.2 CRDI |
Gross Power - SAE J1995 | 67.1 hp |
Net Power | 65.8 hp |
Net Power - ISO 9249 | 66.5 hp |
Net Power - SAE 1349 | 65.8 hp |
Peak Torque - 1,500 rpm - SAE J1995 | 153 ft·lbf |
Stroke | 3.9 in |
Operating Specifications
Breakout Force - Tilt Cylinder | 3907 lb |
Ground Contact Area - With 320 mm/12.6 in Track | 1373 in² |
Ground Contact Area - With 400 mm/15.7 in Track | 1716 in² |
Ground Pressure - With 320 mm/12.6 in Track | 5.7 psi |
Ground Pressure - With 400 mm/15.7 in Track | 4.7 psi |
Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
Rated Operating Capacities - 35% Tipping Load | 1740 lb |
Rated Operating Capacities - 50% Tipping Load | 2485 lb |
Rated Operating Capacity with Optional Counterweight | 2700 lb |
Tipping Load | 4970 lb |
Weights
Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
Operating Weight | 7831 lb |
Dimensions
Bucket Pin Height - Carry Position | 8.6 in |
Bucket Pin Height - Maximum Lift | 118.2 in |
Bucket Pin Reach - Maximum Lift | 12.2 in |
Clearance at Maximum Lift and Dump | 88.7 in |
Departure Angle | 34.5° |
Ground Clearance | 7.6 in |
Height - Top of Cab | 80.3 in |
Length - Track on Ground | 54.5 in |
Length - With Bucket on Ground | 127.3 in |
Length - Without Bucket | 99.3 in |
Maximum Dump Angle | 48° |
Maximum Overall Height | 150.8 in |
Maximum Reach - With Arms Parallel to Ground | 51.8 in |
Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
Overall Length - Track | 71.2 in |
Rack Back Angle - Maximum Height | 87.5° |
Reach - Maximum Lift/Dump | 28.6 in |
Turning Radius from Center - Bucket | 81.1 in |
Turning Radius from Center - Coupler | 45.7 in |
Turning Radius from Center - Machine Rear | 57.4 in |
Vehicle Width (320 mm/12.6 in tracks) | 66 in |
Vehicle Width (400 mm/15.7 in tracks) | 69.1 in |
Hydraulic System
Hydraulic Flow - High Flow - Hydraulic Power (Calculated) | 50.9 hp |
Hydraulic Flow - High Flow - Loader Hydraulic Flow | 26 gal/min |
Hydraulic Flow - High Flow - Loader Hydraulic Pressure | 3336 psi |
Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 35.5 hp |
Hydraulic Flow - Standard - Loader Hydraulic Flow | 18 gal/min |
Hydraulic Flow - Standard - Loader Hydraulic Pressure | 3336 psi |
Cab
FOPS | ISO 3449:2005 Level I |
ROPS | ISO 3471:2008 |
Power Train
Travel Speed - Forward or Reverse - One Speed | 5 mile/h |
Travel Speed - Forward or Reverse - Two Speed | 7.6 mile/h |
Service Refill Capacities
Cooling System | 3.2 gal (US) |
Engine Crankcase | 2.6 gal (US) |
Fuel Tank | 15.1 gal (US) |
Hydraulic System | 11.9 gal (US) |
Hydraulic Tank | 9 gal (US) |
Noise Level
Inside Cab** | 83 dB(A) |
Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
Note (2) | **The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
Note (3) | ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
Outside Cab*** | 103 dB(A) |
Air Conditioning System (if equipped)
Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |
