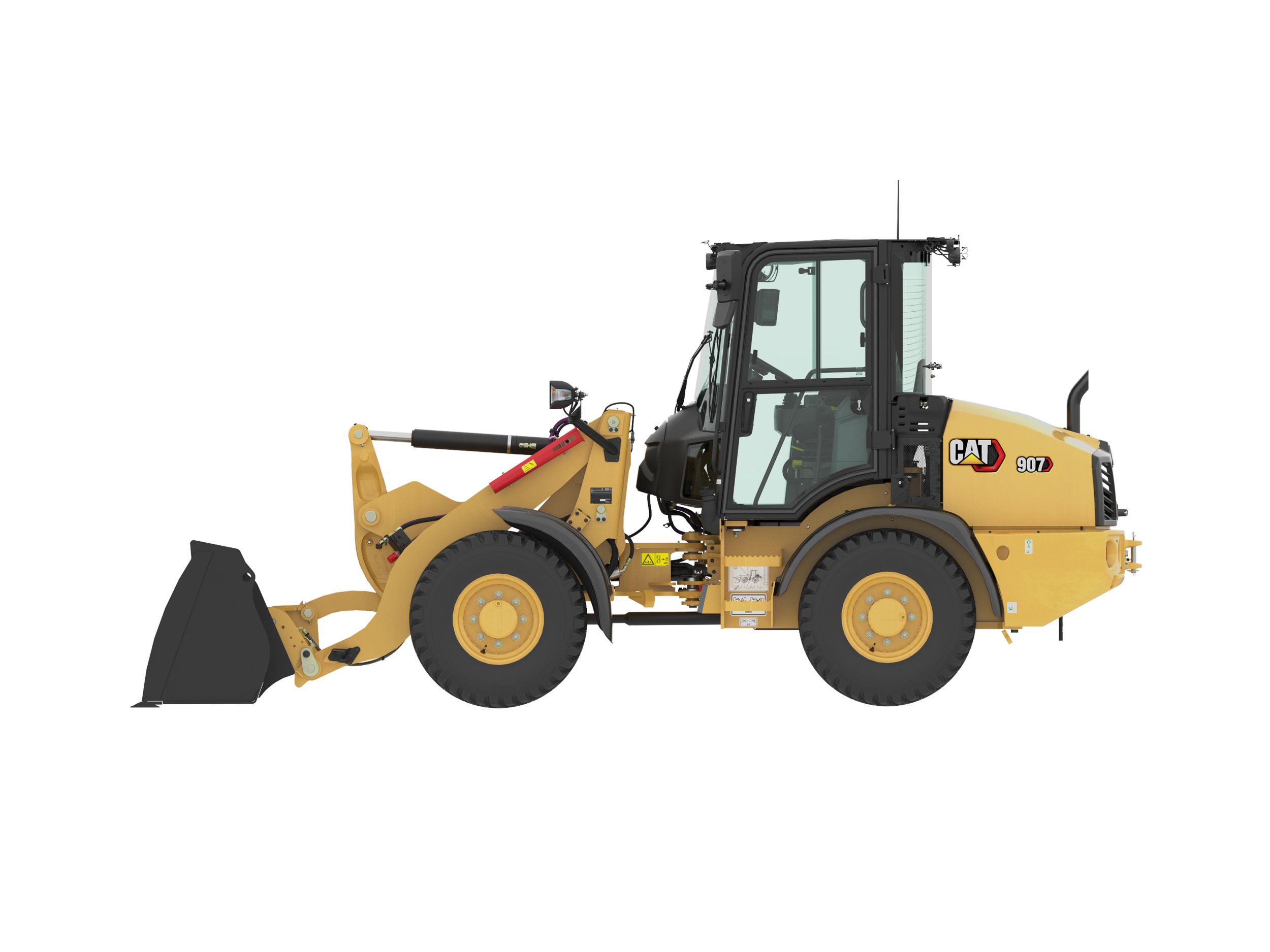

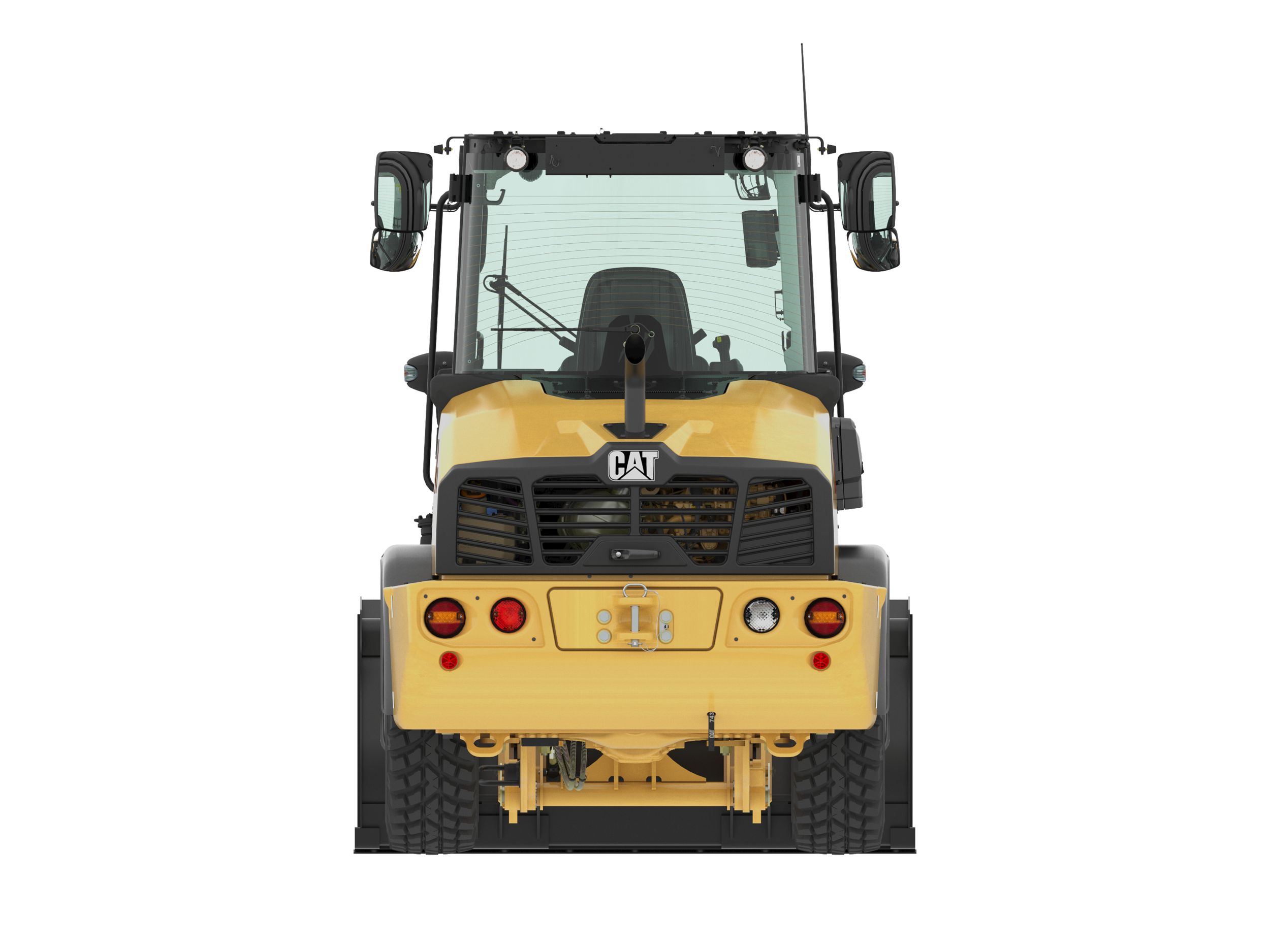

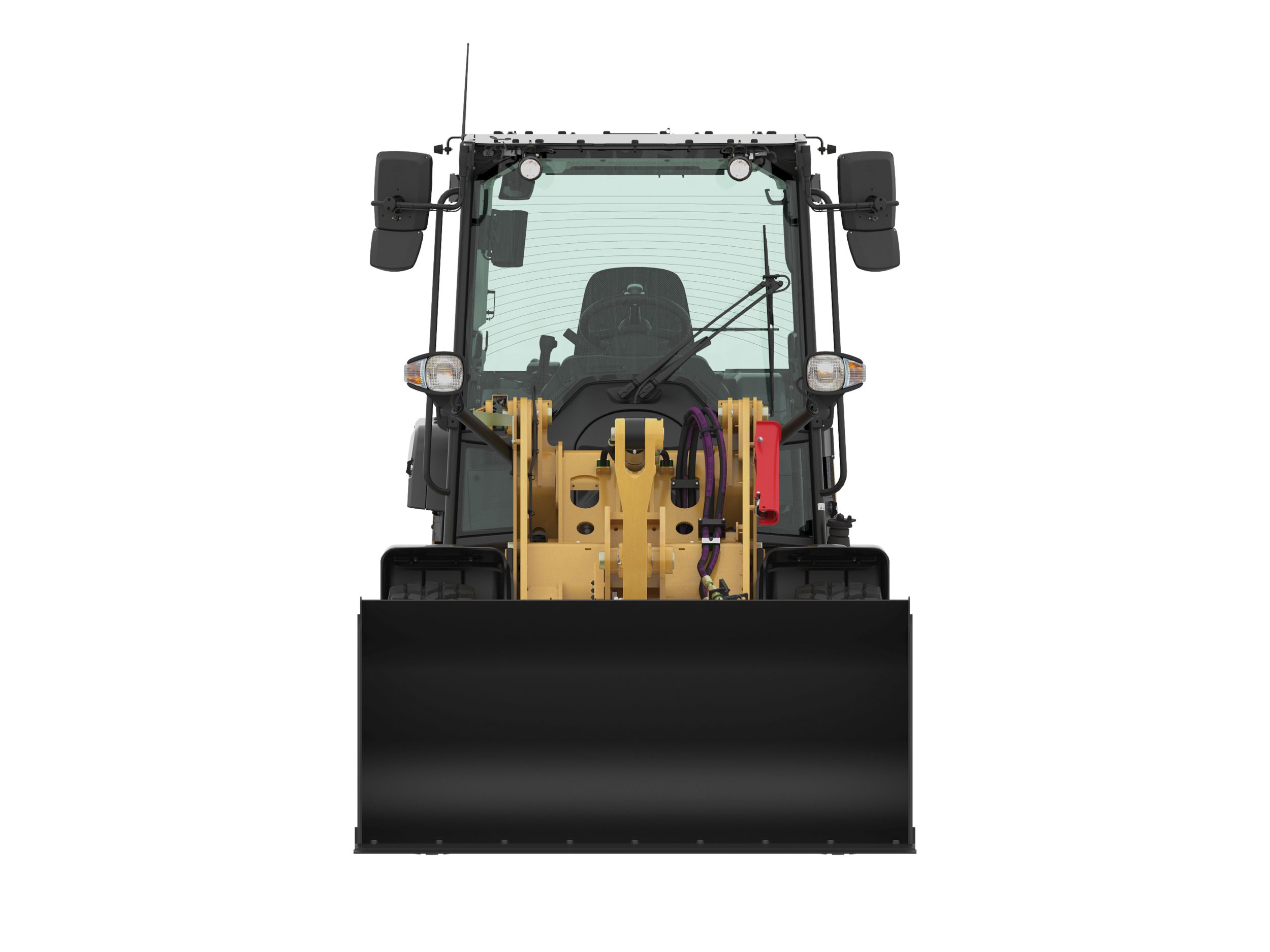

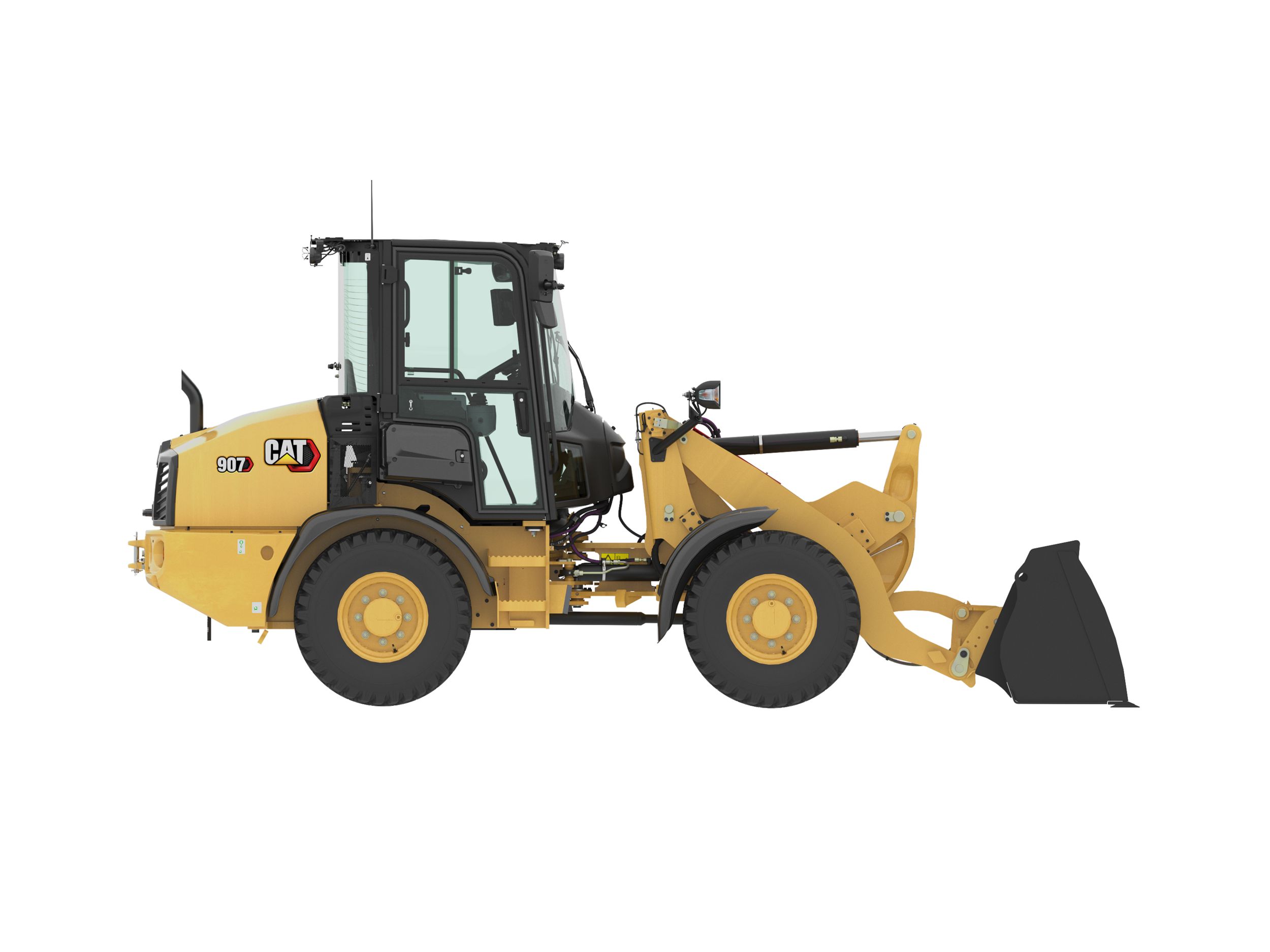

Cat 907 Compact Wheel Loader

Cat 907 Compact Wheel Loader

Configured for Success

Get a quote

More Comfort – More Performance – More Versatility

60% Greater Wiper Coverage

all new cab with seat mounted controls and integrated display screen
40 kph (25 mph)

with "shift on the go" transmission
Customized

for application specific configurations including factory and aftermarket options

Engine

Bore	3.54 in
Displacement	171 in³
Engine Model	Cat C2.8*
Maximum Engine Speed	2550 rpm
Maximum Gross Power	74.7 hp
Maximum Gross Power - ISO 14396	74.3 hp
Maximum Gross Power - ISO 14396 (metric)	75.3 mhp
Maximum Gross Power - Rated Engine Speed	2400 r/min
Maximum Gross Power - SAE J1995	74.7 hp
Maximum Gross Torque - ISO 14396	221 lb/ft
Maximum Gross Torque - SAE J1995	222 lb/ft
Maximum Net Torque - ISO 9249	217 lb/ft
Maximum Net Torque - SAE J1349	218 lb/ft
Note	*Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1)	Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	Net power advertised is the power available at the flywheel.
Note (3)	#Maximum gross and net torque measured at 1,600 rpm.
Rated Net Power - 2,400 rpm - ISO 9249 (metric)	73.1 mhp
Rated Net Power - ISO 9249	72.1 hp
Rated Net Power - Rated Engine Speed	2400 r/min
Rated Net Power - SAE J1349	72.7 hp
Stroke	4.33 in

Weights

Operating Weight

12765 lb

Buckets

Bucket Capacities	0.75-1.55 m³ (1.0-2.0 yd³)
Bucket Capacities - General Purpose	0.80-1.35 m³ (1.0-1.7 yd³)
Bucket Capacities - Light Material	1.25-1.55 m³ (1.6-2.0 yd³)
Multi-Purpose	0.75-1.1 m³ (1.0-1.4 yd³)
Note	Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration.
Note (1)	Bucket capacities stated include BOCE, in line with ISO 7546.

Service Refill Capacities

Axles - Front Center Differential	2.3 Gal
Axles - Rear Center Differential	2.3 Gal
Cooling System	3.2 Gal
Engine Crankcase	2.3 Gal
Fuel Tank	24 Gal
Hydraulic System - Including Tank	17.8 Gal
Hydraulic Tank	11.8 Gal
Note	No Diesel Exhaust Fluid (DEF) fluid needed on this size engine.
Transmission	0.6 Gal

Axles

Front	Fixed (standard), Locking Differential (optional)
Note	Oscillation of ±11 degrees via hitch between front and rear frames.
Rear	Fixed (standard), Locking Differential (optional)

Steering

Maximum Flow - Steering Pump	12.3 gal/min
Maximum Working Pressure - Steering Pump	3336 psi
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left	3.25 turns or 4.00 turns
Steering Articulation Angle - Each Direction	39 °
Steering Cycle Times – (full left to full right) – at High Idle	2.8 s

Transmission

Forward and Reverse - Speed Range 1*	6 mile/h
Forward and Reverse - Speed Range 2** - High Speed	10.5 mile/h
Forward and Reverse - Speed Range 2** - Standard	12 mile/h
Forward and Reverse - Speed Range 3***	25 mile/h
Forward and Reverse - Speed Range Creep#	6 mile/h
Note	#Factory default shown, can be adjusted to any speed up to 19 km/h (12 mph).
Note (1)	*Creep function not available in this gear or above.
Note (2)	**Max speed dependent on model and configuration (standard vs. high speed transmission).
Note (3)	***Reverse is 30 km/h (19 mph).

Tires

Note	*This tire has been used for all dimension, stability and performance data.
Note (1)	Other tire choices are available. Contact your Cat dealer for details.
Note (2)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Tire Size - Optional	405/70 R18 Powerloads
Tire Size - Optional (1)	340/80 R18 XMCL/Bibload
Tire Size - Optional (2)	340/80 R18 TRI 2
Tire Size - Optional (3)	40X14-20 TL, SM/TR
Tire Size - Optional 4	340/80 R18 Duraforce
Tire Size - Standard	*405/70 R18 SPT9

Cab

FOPS	ISO 3449:2005 Level II
Note (1)	Canopy and cab, Rollover Protective Structures (ROPS) are available worldwide. Canopy not available in EU.
Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 71 dB(A).
Note (3)	*Measurements were conducted with the cab doors and windows closed.
Note (4)	The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 101 dB(A). 99 dB(A) Low Sound – Option available.
ROPS	ISO 3471:2008

Loader Hydraulic System

Hydraulic Cycle Time - Dump	1.6 s
Hydraulic Cycle Time - Float Down	2.8 s
Hydraulic Cycle Time - Lift	5 s
Hydraulic Cycle Time - Rackback	2.2 s
Main Relief - 1st Auxiliary (3rd slice)	3408 psi
Main Relief - 1st Auxiliary (3rd slice) - High Flow*	32 gal/min
Main Relief - 1st Auxiliary (3rd slice) - Standard Flow*	21 gal/min
Main Relief - 2nd Auxiliary (4th slice)	3408 psi
Main Relief - 2nd Auxiliary (4th slice) - Flow	12 gal/min
Note	* Maximum flow stated, actual flow delta could be 6% from data shown. Also adjustable from 20% to 100% of maximum flow through display.

Dimensions - With HPL-V Coupler - Approximate#

80% of Tip: Firm and Level EN474-3 ††	5255 lb
Articulation Angle - Degrees	39°
Carry Height: Bucket Pin	1.08 ft
Clearance: Bucket at 45° *	8.25 ft
Clearance: Level Bucket**	9.92 ft
Clearance: Load over Height**	9.5 ft
Departure Angle - Degrees	30°
Dig Depth**	0.33 in
Dump Angle at Full Lift	45°
Height: Bucket Pin**	10.67 ft
Height: Ground Axle Center**	1.58 ft
Height: Ground Clearance**	1 ft
Height: Ground to Beacon**	9.08 ft
Height: Ground to Cab**	8.5 ft
Height: Overall**	13.5 ft
Length: Front Axle to Front of Coupler	3.5 ft
Length: Hitch to Front Axle	3.58 ft
Length: Overall*	17.58 ft
Length: Rear Axle to Bumper	4.58 ft
Length: Wheel Base	7.08 ft
Note (1)	*Vary with bucket
Note (2)	**Vary with tire
Note (3)	^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL),1.05 m3 (1.4 yd3) general purpose bucket.
Note (4)	^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)	†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)	††Full compliance to EN474-3 and SAE J1197.
Note (7)	#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)	Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R18 tires and 1.05 m3 (1.4 yd3) general purpose bucket with bolt-on cutting edge or a class II fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9)	Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9.
Operating Weight: Bucket ^	12689 lb
Operating Weight: Carriage and Tines ^^	12220 lb
Rack Angle at Carry	51°
Rack Angle at Full Lift	56°
Reach: Bucket at 45° *	2.33 ft
Tipping Load - Full Turn - ISO 14397-1 †	8235 lb
Tipping Load - Full Turn †	6569 lb
Tipping Load - Straight - ISO 14397-1 †	9773 lb
Tipping Load - Straight †	7807 lb
Turning Radius: Inside of Tires	6.75 ft
Turning Radius: Outside of Tires	12.92 ft
Turning Radius: Over Bucket	14.75 ft
Width: Bucket	6.75 ft
Width: Over Tires	6.07 ft
Width: Tread Center	4.67 ft

Dimensions - With SSL Coupler - Approximate

80% of Tip: Firm and Level EN474-3 ††	5013 lb
Articulation Angle - Degrees	39°
Carry Height: Bucket Pin	1.17 ft
Clearance - Bucket at 45°	7.83 ft
Clearance - Level Bucket	9.92 ft
Clearance: Load over Height**	9.5 ft
Departure Angle - Degrees	30°
Dig Depth	3 in
Dump Angle at Full Lift	50°
Height - Bucket Pin	10.67 ft
Height - Ground Clearance	1 ft
Height - Ground to Cab	8.5 ft
Height: Ground Axle Center**	1.58 ft
Height: Ground to Beacon**	9.08 ft
Height: Overall**	13.83 ft
Length - Overall with Bucket	18.17 ft
Length - Wheel Base	7.08 ft
Length: Front Axle to Front of Coupler	4.33 ft
Length: Hitch to Front Axle	3.58 ft
Length: Rear Axle to Bumper	4.58 ft
Note (1)	*Vary with bucket
Note (2)	**Vary with tire
Note (3)	^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL),1.05 m3 (1.4 yd3) general purpose bucket.
Note (4)	^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)	†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)	††Full compliance to EN474-3 and SAE J1197.
Note (7)	#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)	Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R18 tires and 1.05 m3 (1.4 yd3) general purpose bucket with bolt-on cutting edge or a class II fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9)	Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9.
Operating Weight: Bucket ^	12897 lb
Operating Weight: Carriage and Tines ^^	12414 lb
Rack Angle at Carry	46°
Rack Angle at Full Lift	51°
Reach - Bucket at 45°	2.67 ft
Tipping Load - Full Turn †	6266 lb
Tipping Load - Straight †	7416 lb
Tipping Load – Full Turn – ISO 14397-1 †	7257 lb
Tipping Load – Straight – ISO 14397-1 †	8653 lb
Turning Radius - Inside Tire	6.75 ft
Turning Radius - Over Bucket	15 ft
Turning Radius: Outside of Tires	12.92 ft
Width - Bucket	6.75 ft
Width - Over Tires	6.08 ft
Width - Tread Center	4.67 ft
