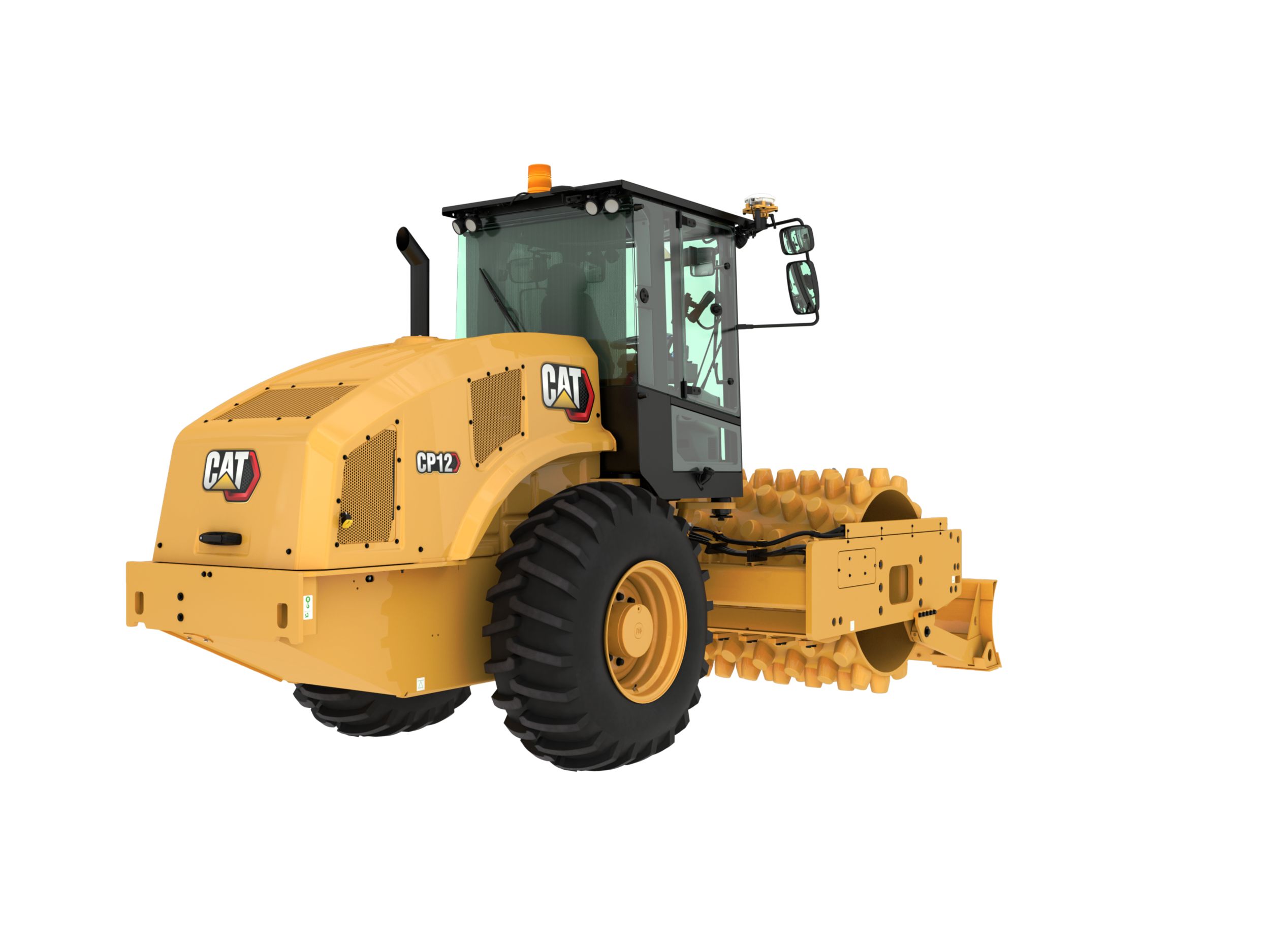

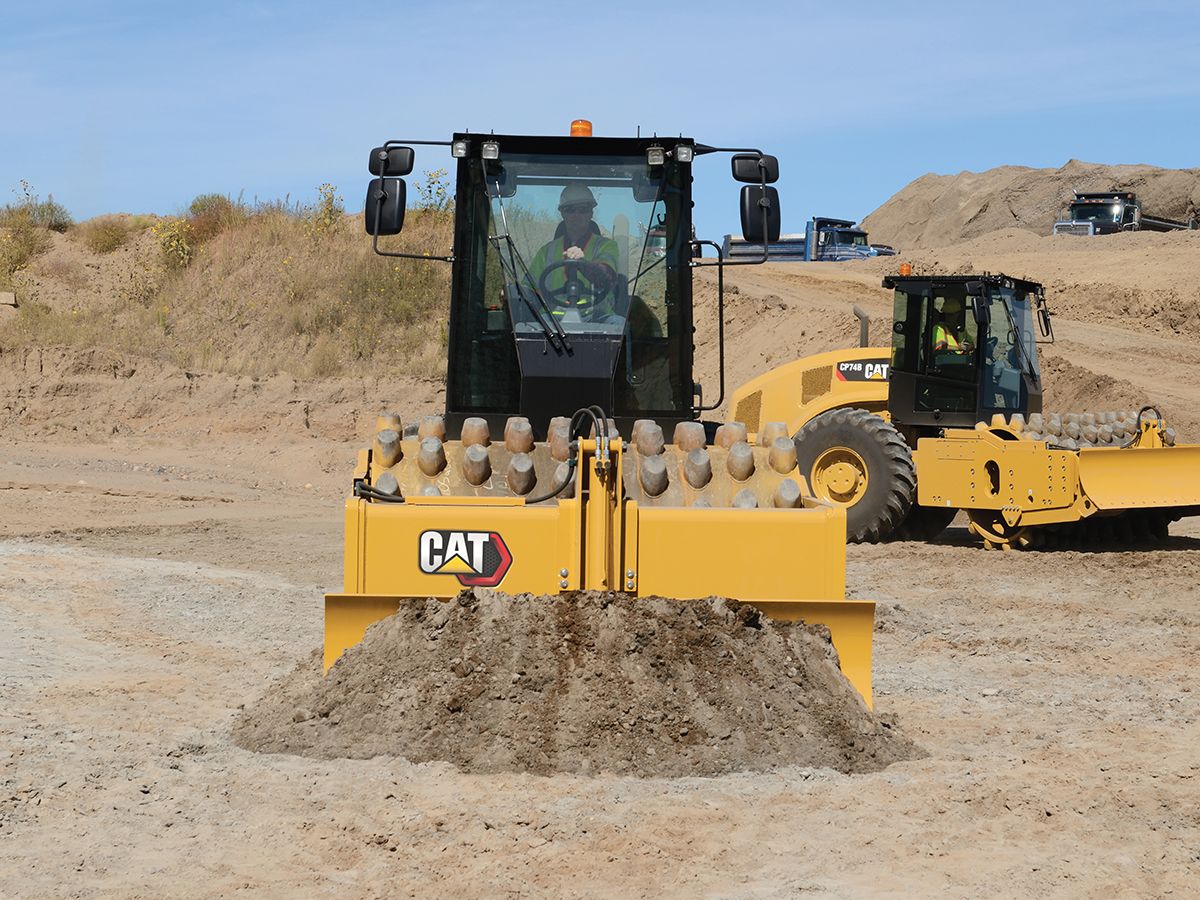

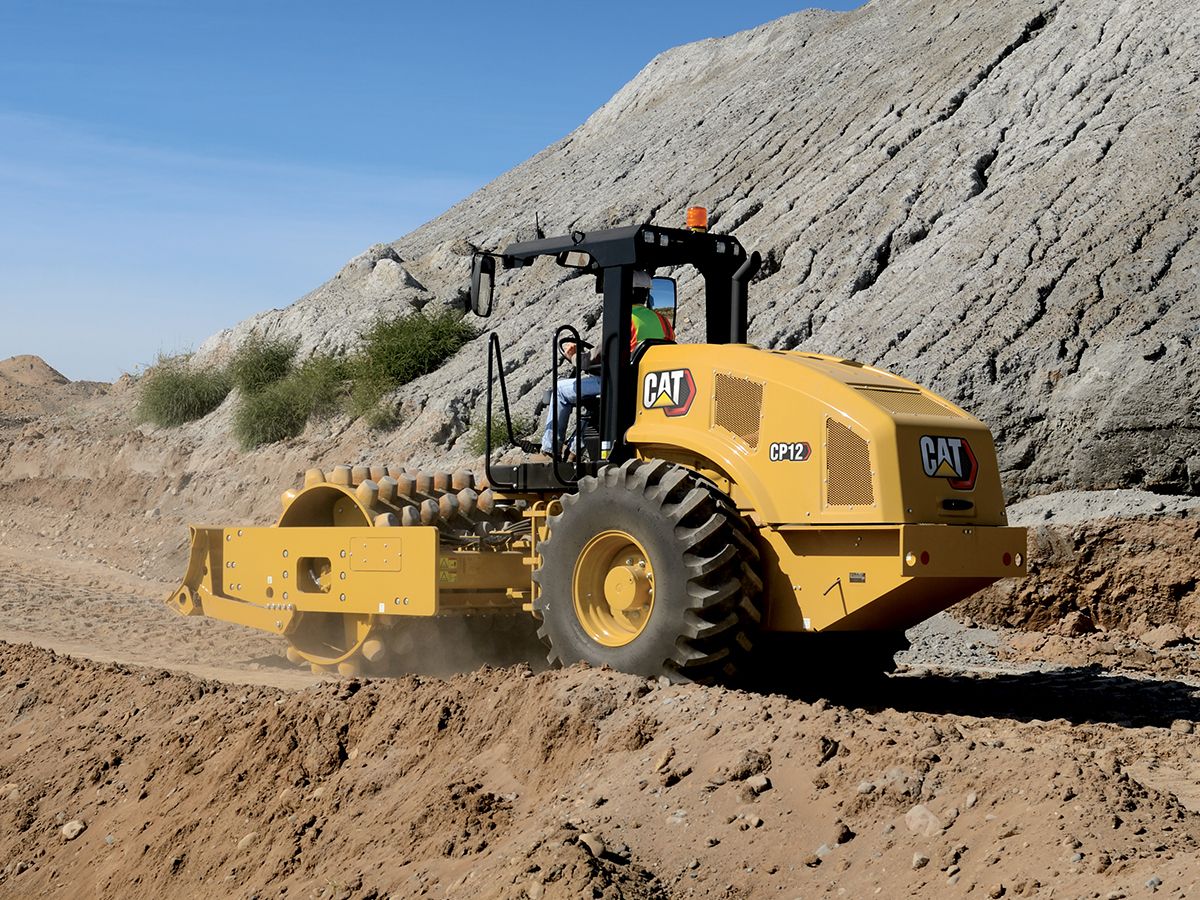

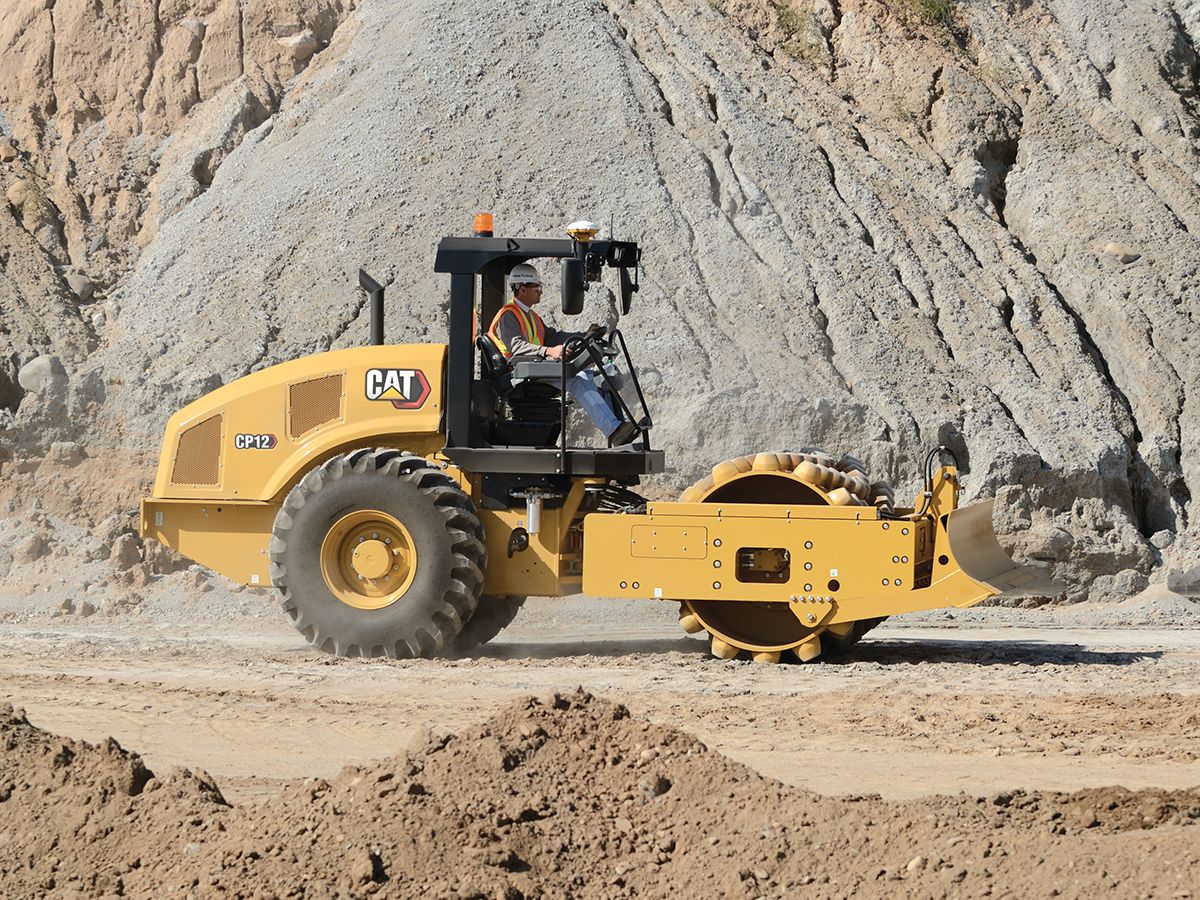

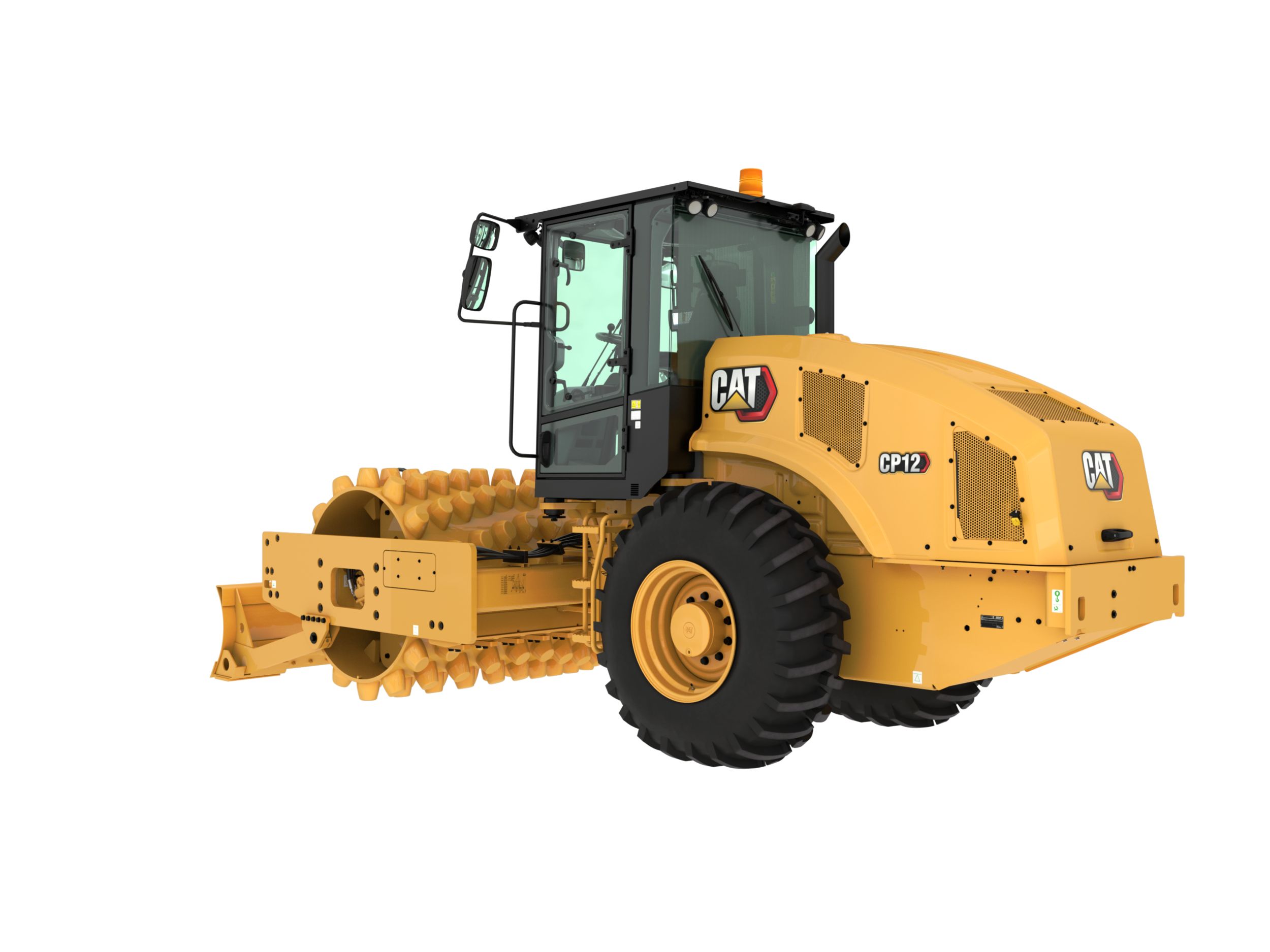

Engine
|
Bore
|
4.1 in
|
|
Emissions
|
U.S. EPA Tier 4 Final
|
|
Engine Model
|
Cat® C4.4
|
|
Engine Power - ISO 14396
|
156.9 hp
|
|
Gross Power
|
159 hp
|
|
Net Power - ISO 9249
|
131.6 hp
|
|
Net Power - SAE J1349:2011
|
129.9 hp
|
|
Note (1)
|
Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
|
|
Stroke
|
5 in
|
Weights
|
Note (1)
|
Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning.
|
|
Operating Weight - With Cab
|
26266 lb
|
|
Operating Weight - With ROPS/FOPS Canopy
|
25823 lb
|
|
Weight - Drum with Cab
|
14235 lb
|
|
Weight - Drum with ROPS/FOPS Canopy
|
14030 lb
|
Vibratory System
|
Centrifugal Force - Maximum
|
67653 lb
|
|
Centrifugal Force - Minimum
|
31680 lb
|
|
Nominal Amplitude - High
|
0.083 in
|
|
Nominal Amplitude - Low
|
0.039 in
|
|
Variable Frequency Option Range
|
23.3 - 30.5 Hz (1400-1830 vpm)
|
|
Vibratory Frequency - Standard
|
1830 VPM
|
Dimensions
|
Compaction Width
|
84 in
|
|
Drum Diameter - Over Pads
|
61 in
|
|
Maximum Height
|
10.3 ft
|
|
Optional Blade Height
|
26.9 in
|
|
Overall Length
|
19.2 ft
|
|
Overall Length - With Blade Option
|
21 ft
|
|
Overall Width
|
7.5 ft
|
|
Overall Width - With Blade Option
|
8.2 ft
|
|
Wheel Base
|
9.5 ft
|
Operating Specifications
|
Curb Clearance
|
19.9 in
|
|
Ground Clearance
|
17.5 in
|
|
Travel Speed - Maximum
|
7.1 mile/h
|
|
Turning Radius - Inside Drum Edge
|
12.1 ft
|
Service Refill Capacities
|
Axle and Final Drives
|
4.8 gal (US)
|
|
Cooling System
|
8.3 gal (US)
|
|
DEF Tank
|
5 gal (US)
|
|
Eccentric Weight Housings (combined)
|
6.9 gal (US)
|
|
Engine Oil - With Filter
|
3.1 gal (US)
|
|
Fuel Tank Capacity
|
69.7 gal (US)
|
|
Hydraulic Tank
|
13.2 gal (US)
|
