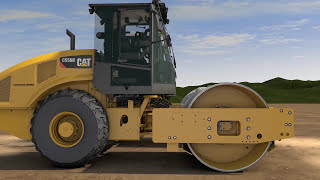

Get a quoteCP56B Vibratory Soil Compactor
Productive and Efficient
More Comfort – More Performance – More Versatility
-
Lower Operating Cost

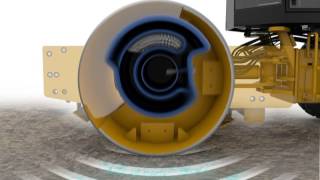

Up to 15% fuel savings with eco-mode, exclusive pod-style vibratory design offering 3 year/3000 hour service intervals, and a no-maintenance hitch with sealed-for-life bearings.
-
Up To 50% More Efficient

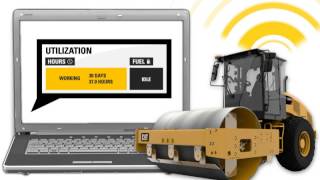

On-board compaction measurement helps take guesswork out of the process with exclusive MDP technology that gives compaction readings; scalable solutions including mapping and machine-to-machine communication keep jobsite connected.
-
Enhanced Operator Comfort
Visibility is enhanced by the new rear vision camera; standard tiltable steering column gives the operator more flexibility, and our integrated backlit display console turns with seat.
Weights
| Operating Weight - With Cab | 25707 lb |
| Weight - Drum with Cab | 14231 lb |
| Weight - Drum with ROPS/FOPS | 14026 lb |
Operating Specifications
| Compaction Width | 84 in |
| Ground Clearance | 17.9 in |
| Travel Speed - Maximum | 7 mile/h |
| Turning Radius - Inside Drum Edge | 12.08 ft |
Engine
| Engine Model | Cat C4.4 with ACERT |
| Gross Power | 157 hp |
Dimensions
| Drum Diameter | 51 in |
| Drum Diameter - Over Pads | 61 in |
| Drum Width | 84 in |
| Height - With ROPS/FOPS or Cab | 10.25 ft |
| Optional Blade Height | 27.1 in |
| Overall Length | 19.25 ft |
| Overall Length - With Blade Option | 21 ft |
| Overall Width | 7.58 ft |
| Overall Width - With Blade Option | 8.25 ft |
| Wheel Base | 9.58 ft |
Vibratory System
| Centrifugal Force - Maximum | 67600 lb |
| Centrifugal Force - Minimum | 31670 lb |
| Nominal Amplitude - High | 0.083 in |
| Nominal Amplitude - Low | 0.039 in |
| Variable Frequency Option Range | 23.3 - 30.5 Hz (1400-1830 vpm) |
| Vibratory Frequency - Standard | 30.5 Hz (1830 vpm) |
Tires
| Tires | 23.1 x 26 |
Service Refill Capacities
| Fuel Tank Capacity | 64 gal (US) |
