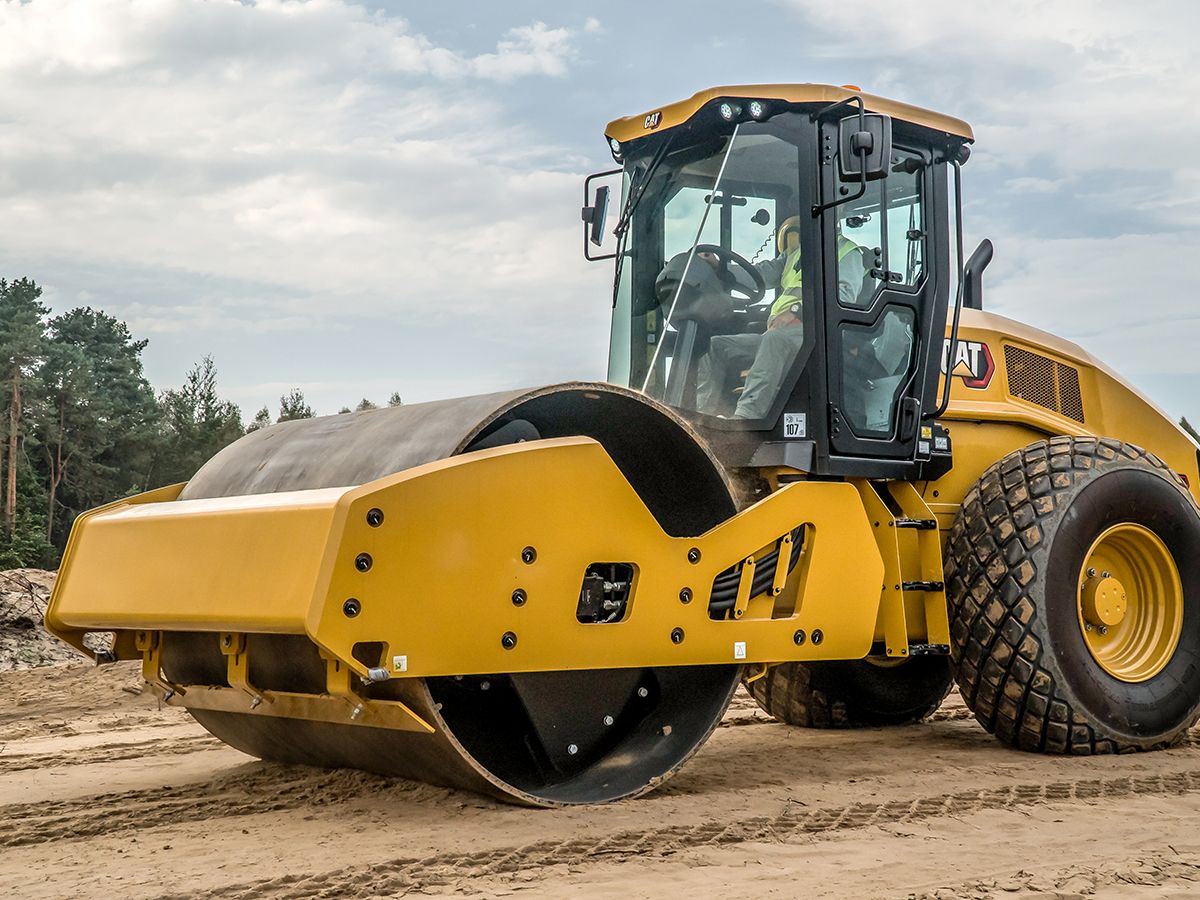

Engine
Bore
|
3.9 in
|
Emissions
|
U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V
|
Engine Model
|
Cat® C3.6
|
Engine Power - ISO 14396
|
121 hp
|
Gross Power
|
122.9 hp
|
Net Power - ISO 9249
|
112.2 hp
|
Net Power - SAE J1349
|
111.2 hp
|
Note (1)
|
Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
|
Stroke
|
4.7 in
|
Weights
Note (1)
|
Operating weights are approximate and consider full fluids and 75 kg (165 lb) operator. Cab weights include heat and air conditioning.
|
Operating Weight - With Cab
|
23136 lb
|
Operating Weight - With ROPS/FOPS Canopy
|
22796 lb
|
Weight - Drum with Cab
|
12948 lb
|
Weight - Drum with ROPS/FOPS Canopy
|
12853 lb
|
Vibratory System
Centrifugal Force - Maximum
|
56200 lb
|
Centrifugal Force - Minimum
|
33500 lb
|
Nominal Amplitude - High
|
0.079 in
|
Nominal Amplitude - Low
|
0.039 in
|
Static Linear Load - With Cab
|
154.1 lb/in
|
Static Linear Load - With ROPS/FOPS Canopy
|
153 lb/in
|
Dimensions
Compaction Width
|
84 in
|
Drum Diameter
|
60.4 in
|
Maximum Height
|
9.9 ft
|
Overall Length
|
18.7 ft
|
Overall Width
|
7.5 ft
|
Wheel Base
|
9.8 ft
|
Operating Specifications
Curb Clearance
|
19.4 in
|
Ground Clearance
|
20.4 in
|
Travel Speed - Maximum
|
6.8 mile/h
|
Turning Radius - Inside Drum Edge
|
12.7 ft
|
Service Refill Capacities
Axle and Final Drives
|
2.6 gal (US)
|
Cooling System
|
4.9 gal (US)
|
DEF Tank
|
5 gal (US)
|
Eccentric Weight Housings (combined)
|
6.9 gal (US)
|
Engine Oil - With Filter
|
3.1 gal (US)
|
Fuel Tank Capacity
|
56.3 gal (US)
|
Hydraulic Tank
|
6.1 gal (US)
|
