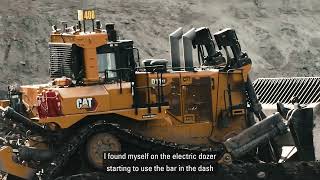

Get a quoteD11 XE
More Comfort – More Performance – More Versatility
-
Up to 20% Longer Life
-
60% Fewer Moving Parts
-
Up to 25% Less Fuel Consumed
Engine - U.S. EPA Tier 4 Final/EU Stage V
| Displacement | 1959 inÂł |
| Engine Model | Cat® C32B |
| Engine Power - Net SAE J1349/ISO 9249 - Forward | 861 hp |
| Engine Power - Net SAE J1349/ISO 9249 - Reverse | 956 hp |
| Note (1) | *Excludes all fan losses. |
| Note (2) | Engine ratings apply at 1,600 rpm. |
| Note (3) | Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required. |
Engine - U.S. EPA Tier 2 Equivalent
| Displacement | 1959 inÂł |
| Engine Model | Cat® C32B |
| Engine Power - Net SAE J1349/ISO 9249 - Forward | 861 hp |
| Engine Power - Net SAE J1349/ISO 9249 - Reverse | 959 hp |
| Note (1) | *Excludes all fan losses. |
| Note (2) | Engine ratings apply at 1,600 rpm. |
| Note (3) | Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required. |
Fuel Tank Capacities
| Fuel Tank - Usable Volume | 466 gal (US) |
Service Refill Capacities
| Cooling System | 50.7 gal (US) |
| Engine Crankcase | 35.1 gal (US) |
| Final Drive - Each | 10.6 gal (US) |
| Hydraulic System Chassis + Blade and Ripper (Carrydozer) | 143.4 gal (US) |
| Hydraulic System Chassis + Blade and Ripper (Standard) | 117.6 gal (US) |
| Hydraulic System Tank and Chassis | 64.7 gal (US) |
| Hydraulic Tank | 42.2 gal (US) |
| Power Train - Refill Volume | 109.6 gal (US) |
| Powertrain | 120 gal (US) |
| Roller Frames - Each | 24.8 gal (US) |
Weights
| Note (1) | Operating weight includes blade tilt cylinders, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 11U ABR bulldozer, single-shank ripper with pin-puller, fast fuel, 710 mm (28 in) ES shoes, and operator. |
| Note (2) | CD Operating Weight includes lubricant, coolant, full fuel tank, 915 mm (36 in) extreme service shoes, 11 Carrydozer, singleshank ripper, and operator. |
| Operating Weight | 238794 lb |
| Operating Weight - Carrydozer | 257958 lb |
Hydraulic Controls
| Combined Pump Output - Implement | 177 gpm |
| Pump Type | Variable displacement piston pump |
Undercarriage
| Ground Clearance* | 30.6 in |
| Ground Contact Area | 9781 in² |
| Ground Contact Area - CD | 12605 in² |
| Grouser Height | 4 in |
| Length - Track on Ground | 175 in |
| Number of Carrier Rollers | 1 per side (optional) |
| Pitch | 12.5 in |
| Shoes/Side | 41 |
| Track Gauge | 114 in |
| Track Rollers/Side | 8 |
| Width - Shoe | 28 in |
| Width - Shoe - CD | 36 in |
Air Conditioning System
| Note (1) | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R1234yf (Global Warming Potential = 0.501). The system contains 1.850 kg of refrigerant, which has a CO2 equivalent of 0.001 metric tonnes. |
Standards
| FOPS | Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II |
| ROPS | Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008 |
| Sound (1) | The exterior sound pressure level for the standard machine (ISO 6396:2008) is 113 dB(A) (sound suppressed). |
| Sound (2) | The operator equivalent sound pressure level (ISO 6396:2008) is 76 dB(A) (sound suppressed). |
Transmission
| 1.0 Forward | 2.5 mile/h |
| 1.0 Reverse | 3 mile/h |
| 2.0 Forward | 4.4 mile/h |
| 2.0 Reverse | 5.4 mile/h |
| 3.0 Forward | 7 mile/h |
| 3.0 Reverse | 7 mile/h |
Blades
| Carry Dozer - Blade capacity (SAE J1265) | 57 ydÂł |
| Carry Dozer - Width with blade (over end bits) | 263.9 in |
| Reclamation Universal - Blade capacity (SAE J1265) | 55 ydÂł |
| Reclamation Universal - Width with blade (over end bits) | 251.9 in |
| Semi-Universal (SU)* Capacity | 35.6 ydÂł |
| Semi-Universal (SU)* Width Over Endbits | 219.8 in |
| U-Blade Capacity | 45 ydÂł |
| U-Blade Width | 249.6 in |
Ripper - Single Shank
| Maximum penetration depth (standard tip) | 63.5 in |
| Maximum penetration force * (shank vertical) | 68195 lb |
| Pryout Force | 146991 lb |
Ripper - Single Shank, Deep Ripping
| Maximum penetration depth (standard tip) | 85.5 in |
| Maximum penetration force * (shank vertical) | 68434 lb |
| Pryout Force | 146376 lb |
Ripper - Multi-Shank, Adjustable Parallelogram
| Maximum Penetration - Standard Tip | 43.3 in |
| Maximum Penetration Force - Shank Vertical | 69112 lb |
| Overall Beam Width | 131.1 in |
| Pry-Out Force - Multi-Shank Ripper with One Tooth | 144785 lb |
Dimensions
| Drawbar Height (Center of Clevis)* | 37.1 in |
| Ground Clearance* | 31.4 in |
| Height - FOPS Cab* | 173.4 in |
| Height - ROPS/Canopy* | 185.9 in |
| Height - Top of Stack* | 179.1 in |
| Length - Basic Tractor - With Drawbar | 242.5 in |
| Length - Track on Ground | 175 in |
| Length - With Multi-Shank Ripper | 331.8 in |
| Length - With SU-Blade** | 337.8 in |
| Length - With Single-Shank Ripper | 319.2 in |
| Length - With U-Blade | 340.2 in |
| Note (1) | *Includes grouser height for total dimensions on hard surfaces. |
| Note (2) | **CD Blade on D11/D11 XE CD |
| Overall Length - Basic Tractor | 242.5 in |
| Track Gauge | 114 in |
| Width - Over Trunnions | 172.4 in |
| Width - Without Trunnions - Standard Shoe | 148.9 in |
