Get a quote7495 HF Electric Rope Shovel
THE ULTIMATE IN EFFICIENCY AND RELIABILITY
More Comfort – More Performance – More Versatility
-
Reducing Environmental Impact
Using power efficiently, producing zero direct carbon emissions and regenerating power back to the grid
-

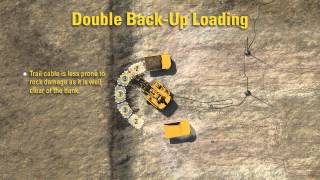

Efficiency-Boosting Operator Assist Technology
Reduces poor digging practices, enables consistent operator performance and provides equal or better cycle times
-
Leader in Reliability and Uptime
With proven AC IGBT Electric Drive System that is streamlined, simple and easy to maintain
Dimensions
| Dipper Capacity | 30.6-62.7 m3 (40-82 yd3) |
| Dipper Payload | 120 t |
| Dipper Payload (Available Dipper Payloads Up To 109 Tonnes [120 tons] When Specified) | 120 t |
| Note | Dependent on application and material density |
Weights
| Ballast - Furnished By Customer | 667150 lb |
| Note (1) | These weights will vary slightly depending upon dipper and optional equipment selection |
| Note (2) | All specifications are based on a 45 m3 (59 yd3) dipper and standard 317.5 cm (125 in) crawlers. |
| Working Weight - With Dipper and Standard Links | 3164000 lb |
Main Structures
| Crawler Dimensions - Overall Width 317.5 cm (125 in) Treads | 41.67 in |
| Ground Bearing Pressure - Note | Ground bearing pressure is dependent upon many factors |
| Ground Bearing Pressure - Total Effective Bearing Area (317.5 cm/125 in) Treads | 57 m2 (248 kPa); 614 ft2 (36 psi) |
| Hoist | A planetary gearbox with dual-output pinions provides the hoist torque transfer from the electric motor to the hoist drum gear. |
| Planetary Propel | Dual-motor independent drive |
| Swing | Two planetary gearboxes, each driven by a vertically mounted motor, are located on either side of the revolving frame. Dual-output pinion shafts from each gearbox engage the swing rack. |
| Upper Works Overall Width - Including Standard Walkways | 41.99 in |
Lube System
| Components (1) | Six pumps (four for open gear lubricant and two for grease) located in an insulated, heated, double-walled lube room |
| Components (2) | External fast fill from lower level |
| Type | Automatic, single-line system for open gear lubricant and grease |
Electrical
| Drive | IGBT Acutrol drive system |
| Note | Other voltage options available to suit customer requirements |
| Power Requirements - 50 Hz | 6,000V, 6,600V, 7,200V, 11,000V |
| Power Requirements - 60 Hz | 7,200V, 13,800V |
| Power Requirements - Average Power Demand | 945-1322 kW |
| Power Requirements - Peak power | 3778 kW |
| Power Requirements - Voltage | 3 phase, 50/60 Hz, 7,200V |
| System Voltage - Nominal | 50/60 Hz, 7,200V |
Front End
| Components | One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilize dipper handle. |
| Crowd (1) | HydraCrowd, hydraulic power skid, located at the front center of the revolving frame deck, powers a large hydraulic cylinder to move the dipper handle fore and aft. |
| Crowd (2) | (Optional) Rope Crowd, the crowd machinery is located at the front center of the revolving frame, consisting of motor, brake, drum and gearing. Plastic-impregnated crowd and retract ropes are used to move the dipper handle fore and aft. |
| Rope Data - Boom Suspension - Diameter | 3.25 in |
| Rope Data - Boom Suspension - No. | 4 |
| Rope Data - Dipper Trip - Diameter | 0.75 in |
| Rope Data - Dipper Trip - No. | 1 |
| Rope Data - Hoist - Diameter | 2.75 in |
| Rope Data - Hoist - No. | 2 |
| Rope Data - Note | High impact ropes available as an option |
Dimensions - Working Ranges
| Dipper Capacities | 30.6-62.7 m3 (40-82 yd3) |
| Dipper Payload | 120 ton (US) |
| Maximum Dumping Height | 29.53 ft |
| Operating Weight | 3164000 lb |
Dimensions (Approximate) - Optimal Working Ranges*
| Cutting Height - Maximum | 55 ft |
| Cutting Radius - Maximum | 79.72 ft |
| Dumping Height - With Clearance to Open Dipper Door | 29.53 ft |
| Note (1) | Optimal working ranges based on loading a Cat 797F truck. |
| Note (2) | *All specifications are based on a 45 m3 (59 yd3) dipper and standard 317.5 cm (125 in) crawlers. |
| Radius of Level Floor | 55.77 ft |
| Revolving Frame Tail Swing Radius | 30.51 ft |
