Engine
|
Bore
|
3.7 in
|
|
Displacement
|
203 in³
|
|
Engine Model - U.S. EPA Tier 4 Final/EU Stage V
|
Cat® C3.3B
|
|
Gross Power - SAE J1995:2014
|
74.3 hp
|
|
Net Power
|
69.5 hp
|
|
Net Power - 2,200 rpm - ISO 9249:2007, 80/1269/EEC
|
69.5 hp
|
|
Note
|
Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, exhaust system and fan.
|
|
Note 1
|
Advertised power is tested per the specified standard in effect at the time of manufacture.
|
|
Stroke
|
4.7 in
|
Weights
|
Maximum Operating Weight with Cab**
|
22451 lb
|
|
Minimum Operating Weight with Cab*
|
21170 lb
|
|
Note (1)
|
*Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, long stick, blade and no bucket.
|
|
Note (2)
|
**Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.
|
|
Operating Weight
|
22451 lb
|
Weight Increase from Minimum Configuration
|
Counterweight
|
552 lb
|
|
Steel Tracks with Pads
|
728 lb
|
Travel System
|
Gradeability - Maximum
|
30 degrees
|
|
Ground Pressure - Maximum Weight
|
6.4 psi
|
|
Ground Pressure - Minimum Weight
|
6 psi
|
|
Maximum Traction Force - High Speed
|
6497 lb
|
|
Maximum Traction Force - Low Speed
|
19064 lb
|
|
Travel Speed - High
|
3.1 mile/h
|
|
Travel Speed - Low
|
1.6 mile/h
|
Service Refill Capacities
|
Cooling System
|
2.6 gal (US)
|
|
Engine Oil
|
3 gal (US)
|
|
Fuel Tank
|
38 gal (US)
|
|
Hydraulic System
|
37 gal (US)
|
|
Hydraulic Tank
|
14 gal (US)
|
Hydraulic System
|
Digging Force - Bucket
|
17459 lb
|
|
Digging Force - Stick
|
11060 lb
|
|
Maximum Auxiliary Circuit - Primary - Flow at Pump
|
35 gal/min
|
|
Maximum Auxiliary Circuit - Primary - Pressure at Pump
|
4134 psi
|
|
Maximum Auxiliary Circuit - Secondary - Flow at Pump
|
9 gal/min
|
|
Maximum Auxiliary Circuit - Secondary - Pressure at Pump
|
4134 psi
|
|
Note
|
Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
|
|
Operating Pressure - Equipment
|
4134 psi
|
|
Operating Pressure - Swing
|
3336 psi
|
|
Operating Pressure - Travel
|
4134 psi
|
|
Pump Flow at 2,400 rpm
|
62 gal/min
|
|
Type
|
Load Sensing Hydraulics with Variable Displacement Piston Pump
|
Swing System
|
Machine Swing Speed
|
10.6 r/min
|
Blade
|
Height
|
17 in
|
|
Width - Standard
|
97.2 in
|
|
Width - Wide
|
103.9 in
|
Certification - Cab
|
Roll Over Protective Structure (ROPS)
|
ISO 12117-2:2008
|
|
Tip Over Protective Structure (TOPS)
|
ISO 12117:1997
|
|
Top Guard
|
ISO 10262:1998 (Level I)
|
Sound
|
Average Exterior Sound Pressure (ISO 6395:2008)
|
99 dB(A)
|
|
Note
|
European Union Directive "2000/14/EC"
|
|
Operator Sound Pressure (ISO 6396:2008)
|
72 dB(A)
|

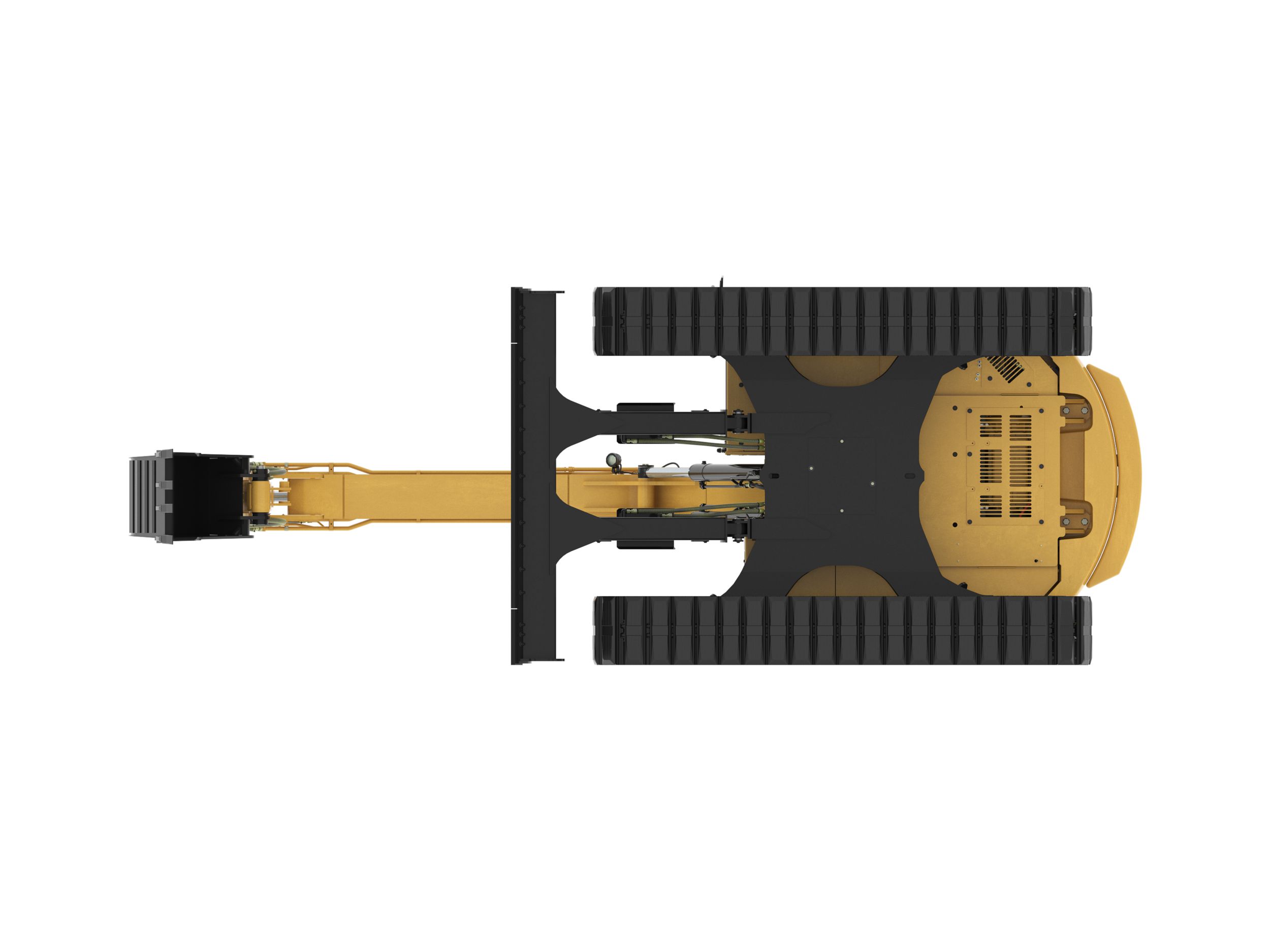

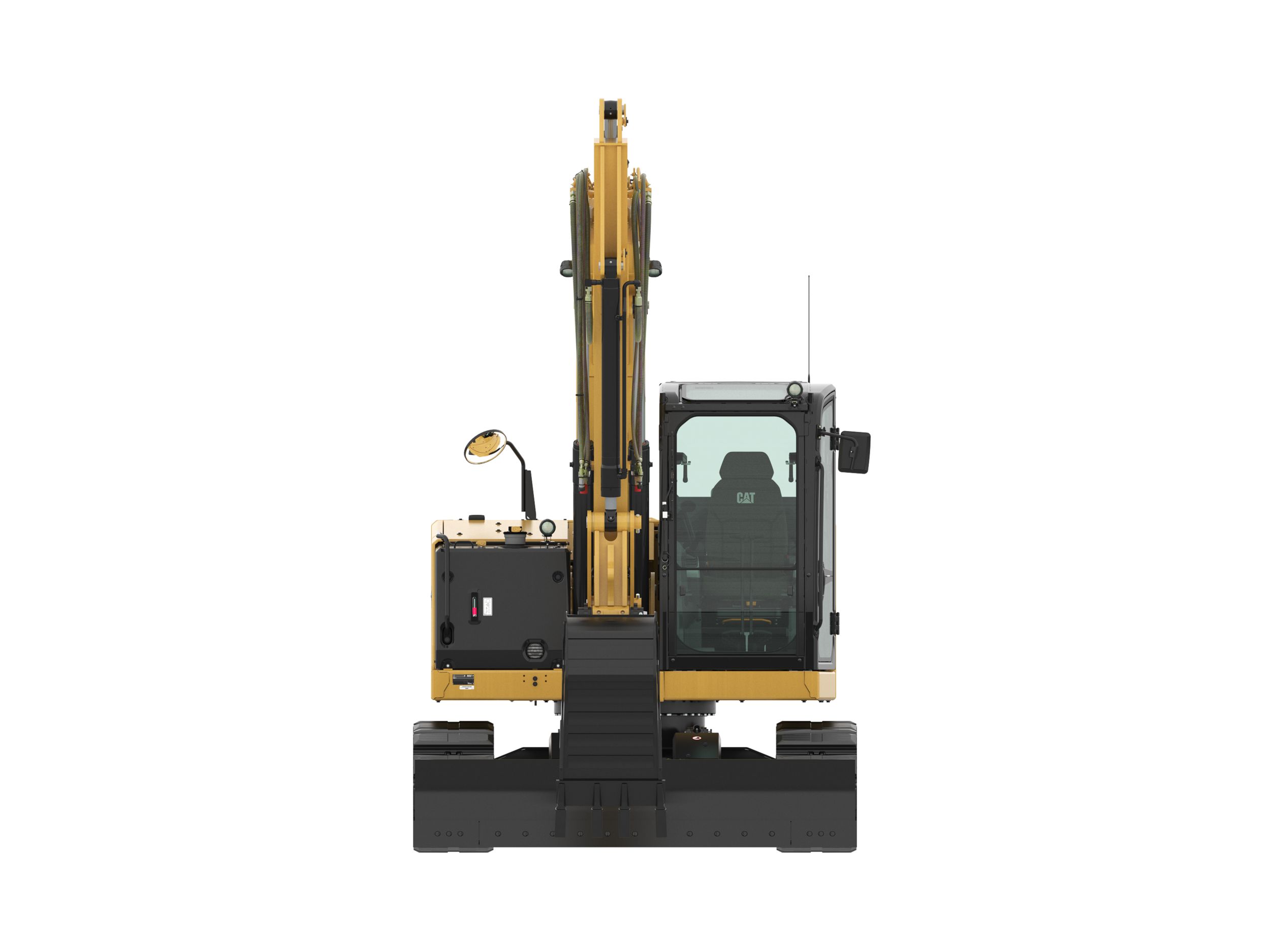

Dimensions - Standard Stick
|
Boom In Reach
|
83.3 in
|
|
Cab Height
|
100 in
|
|
Dig Depth
|
205.2 in
|
|
Ground Clearance - Frame
|
14 in
|
|
Height - Boom Transport - No Tools*
|
100.4 in
|
|
Height - Boom Working - With Tools**
|
106.3 in
|
|
Maximum Blade Depth
|
18.8 in
|
|
Maximum Blade Height
|
16.6 in
|
|
Maximum Dig Height
|
313.8 in
|
|
Maximum Dump Clearance
|
229.5 in
|
|
Maximum Reach
|
303 in
|
|
Maximum Reach - Ground Level
|
298 in
|
|
Note (1)
|
*Boom Height when stick is pinned in transport position (if available) with no attachments.
|
|
Note (2)
|
**Boom Height when stick is pinned in working position with attachments.
|
|
O/A Track Width
|
97.2 in
|
|
O/A Undercarriage Length
|
126 in
|
|
Overall Shipping Length - with Counterweight
|
274.9 in
|
|
Overall Shipping Length - without Counterweight
|
269.7 in
|
|
Stick Length
|
98.4 in
|
|
Swing Bearing - Height
|
28.9 in
|
|
Tail Swing - Standard Counterweight
|
76.1 in
|
|
Tail Swing without Counterweight
|
70.9 in
|
|
Track Belt/Shoe Width
|
17.7 in
|
|
Vertical Wall
|
172.6 in
|
Air Conditioning System
|
Air Conditioning
|
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.
|
