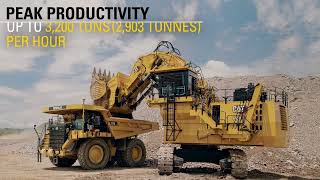

General
|
Bucket Payload
|
33 ton (US)
|
|
Engine Output - SAE J1995
|
1649 hp
|
|
Note
|
Specifications shown above apply to the highly regulated Face Shovel configuration. Backhoe and Frontless configurations are also available for all regions.
|
|
Operating Weight
|
324 ton (US)
|
Diesel Engine - Highly Regulated
|
Emissions
|
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards
|
|
Gross Power - SAE J1995
|
1649 hp
|
|
Net Power - ISO 9249
|
1625 hp
|
|
Net Power - SAE J1349
|
1541 hp
|
Diesel Engine - Lesser Regulated
|
Emissions
|
Meets China Nonroad Stage III emission standards, equivalent to U.S. EPA Tier 2
|
|
Gross Power - SAE J1995
|
1531 hp
|
|
Net Power - ISO 9249
|
1511 hp
|
|
Net Power - SAE J1349
|
1425 hp
|
Diesel Engines
|
Aspiration
|
Turbocharged and air-to-air aftercooled
|
|
Bore
|
5.42 in
|
|
Components (1)
|
Hydraulically driven radiator fan with electronically controlled fan speed
|
|
Components (2)
|
Micro processed engine management
|
|
Components (3)
|
Heavy-duty air filters
|
|
Components (4)
|
Two-stage fuel filter, including water separator
|
|
Components (5)
|
Additional high-capacity water separator
|
|
Displacement
|
1648 in³
|
|
Emissions
|
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards
|
|
Fuel Tank Capacity
|
1342 gal (US)
|
|
Number of Cylinders - Each Engine
|
12
|
|
Stroke
|
6 in
|
Electrical System - Diesel Drive
|
Batteries in Series/Parallel Installation
|
4 x 210 Ah at 12V each; 420 Ah with 24V in total
|
|
Components (1)
|
Battery isolation relays
|
|
Components (2)
|
Emergency stop switches accessible from ground level and in engine module
|
|
Components (3)
|
14 LED high-brightness working flood lights
|
|
Components (4)
|
11 LED service lights
|
|
System Voltage
|
24V
|
Electrical System
|
Batteries
|
4 maintenance-free batteries
|
Operating Weights
|
6030 - Ground Pressure
|
32.3 psi
|
|
6030 - Operating Weight
|
660060 lb
|
|
6030 - Standard Track Pads
|
3.25 ft
|
|
6030 FS - Ground Pressure
|
32.2 psi
|
|
6030 FS - Operating Weight
|
657640 lb
|
|
6030 FS - Standard Track Pads
|
3.25 ft
|
|
Note
|
Other track pads available on request. Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, and 100% fuel and lubricants.
|
Hydraulic System with Pump Managing System
|
Hydraulic Tank Capacity - Approximately
|
707 gal (US)
|
|
Main Pumps
|
4 x variable swash plate pumps
|
|
Main Pumps - Maximum Oil Flow - Diesel Version
|
4 x 552 L/min (4 x 146 gal/min)
|
|
Maximum Pressure - Attachment
|
4495 psi
|
|
Maximum Pressure - Swing Pumps
|
5076 psi
|
|
Maximum Pressure - Travel
|
5220 psi
|
|
Swing Pumps
|
2 x reversible swash plate double pumps
|
|
Swing Pumps - Maximum Oil Flow - Diesel Version
|
4 x 197 L/min (4 x 52 gal/min)
|
|
Total Volume of Hydraulic Oil - Approximately
|
925 gal (US)
|
Hydraulic Oil Cooling
|
Diameter - Fan
|
48 in
|
|
Oil Flow of Cooling Pumps - Diesel Version
|
2 x 467 L/min (2 x 123 gal/min)
|
Swing System
|
Maximum Swing Speed - AC Version
|
5 r/min
|
|
Maximum Swing Speed - Diesel Version
|
4.6 r/min
|
|
Parking Brakes
|
Wet multiple-disc brake, spring-loaded/hydraulically released
|
|
Swing Drive
|
2 compact planetary transmissions with axial piston motors
|
|
Swing Ring
|
Triple-race roller bearing with sealed internal gearing
|
Undercarriage
|
Bottom Rollers - Each Side
|
7
|
|
Components (1)
|
All running surfaces of sprockets, idlers, rollers and pad links, as well as teeth contact areas of sprocket and pad links, are hardened
|
|
Components (2)
|
Cast double-grouser combined pad-links with bushings connected by hardened full floating pins
|
|
Components (3)
|
Fully hydraulic self-adjusting track tensioning system with membrane accumulator
|
|
Components (4)
|
Automatic hydraulic retarder valve to prevent over-speed on downhill travel
|
|
Components (5)
|
Acoustic travel alarm
|
|
Gradeability - Travel Drives - Approximate
|
47 %
|
|
Maximum Tractive Force
|
360144 ft·lbf
|
|
Parking Brakes
|
Wet multiple disc brake, spring loaded/hydraulically released
|
|
Support Rollers - Each Side
|
2 plus a skid plate in between
|
|
Track Pads - Each Side
|
44
|
|
Travel Drives - Each Side
|
1 planetary transmission with 2 two-stage axial piston motors
|
|
Travel Speed - 1st Stage - Maximum
|
0.87 mile/h
|
|
Travel Speed - 2nd Stage - Maximum
|
1.68 mile/h
|
Operator's Cab
|
Components (1)
|
Under roof mounted heating ventilating and air conditioning system
|
|
Components (10)
|
Windshield with parallel intermittent wiper/washer
|
|
Components (11)
|
All-round safety glass, armored windshield and sliding side window
|
|
Components (12)
|
Operator Protective Guards (ISO 10262:1998 Level II
|
|
Components (13)
|
Joystick controls integrated in independently adjustable seat consoles
|
|
Components (14)
|
Fold-away auxiliary seat with safety belt
|
|
Components (2)
|
External sun shields at side and rear windows
|
|
Components (3)
|
Robust instrument panel including large colored BCS screen with transflective technology
|
|
Components (4)
|
Board Control System (BCS) electronic monitoring and data logging system for vital signs and service data of engines, hydraulic system and lubrication system
|
|
Components (5)
|
Hydraulically operated 45 degree access stairway
|
|
Components (6)
|
Emergency egress ladder with ladder cage
|
|
Components (7)
|
Switch in seat cushion to automatically neutralize the hydraulic controls when operator leaves the seat
|
|
Components (8)
|
Pneumatically cushioned and multi-adjustable comfort seat with lumbar support, seat heating, safety belt, head- and armrests
|
|
Components (9)
|
Roller blinds at all windows
|
|
Internal Dimensions of Cab - Height
|
7.05 ft
|
|
Internal Dimensions of Cab - Length
|
7.22 ft
|
|
Internal Dimensions of Cab - Width
|
5.25 ft
|
|
Operator's Eye Level - Approximately
|
21.33 ft
|
Automatic Lubrication System
|
Capacity - Grease Container
|
119 gal (US)
|
|
Type (1)
|
Dual-circuit system with hydraulically driven heavy-duty pump and electronic time relay control to adjust the pause/lube times
|
|
Type (2)
|
Connected to the lubrication system are the swing roller bearing with internal gearing and all pivot points of attachment, bucket and cylinders
|
|
Type (3)
|
Lubricated pinion for greasing of internal gearing of swing ring
|
|
Type (4)
|
System failures displayed by Board Control System
|
|
Type (5)
|
Grease filters between service station and container as well as directly behind grease pump
|
Attachments
|
All buckets (FS and BH) are equipped with a wear package consisting of: (1)
|
Special liner material covering main wear areas inside and outside of bucket and lip shrouds between teeth
|
|
All buckets (FS and BH) are equipped with a wear package consisting of: (2)
|
Wing shrouds on side walls and heel shrouds at bottom edges
|
|
Shovel attachment with unique TriPower kinematics ensuring the following main features: (1)
|
Automatic roll-back limiter to prevent material spillage and kinematic assistance to hydraulic forces
|
|
Shovel attachment with unique TriPower kinematics ensuring the following main features: (2)
|
Horizontal automatic constant-angle bucket guidance and vertical automatic constant-angle bucket guidance
|
|
Shovel attachment with unique TriPower kinematics ensuring the following main features: (3)
|
Constant boom momentum throughout the whole lift arc and crowd force assistance
|
|
Type (1)
|
Catwalks with rails at booms
|
|
Type (2)
|
Special wear packages for highly abrasive materials on request
|
|
Type (3)
|
Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve
|
|
Type (4)
|
Welding procedures allow for internal counter-welding (double prep weld) wherever possible
|
|
Type (5)
|
Booms and sticks are stress-relieved after welding
|
|
Type (6)
|
Booms and sticks are torsion-resistant, welded box design of high-tensile steel with solid steel castings at pivot areas
|
Bucket
|
Bucket Capacity - Backhoe (heaped 1:1)
|
22.2 yd³
|
|
Bucket Capacity - Face Shovel (heaped 2:1)
|
21.6 yd³
|
Digging Forces
|
Maximum Crowd Force
|
291700 ft·lbf
|
|
Maximum Tearout Force
|
212150 ft·lbf
|
