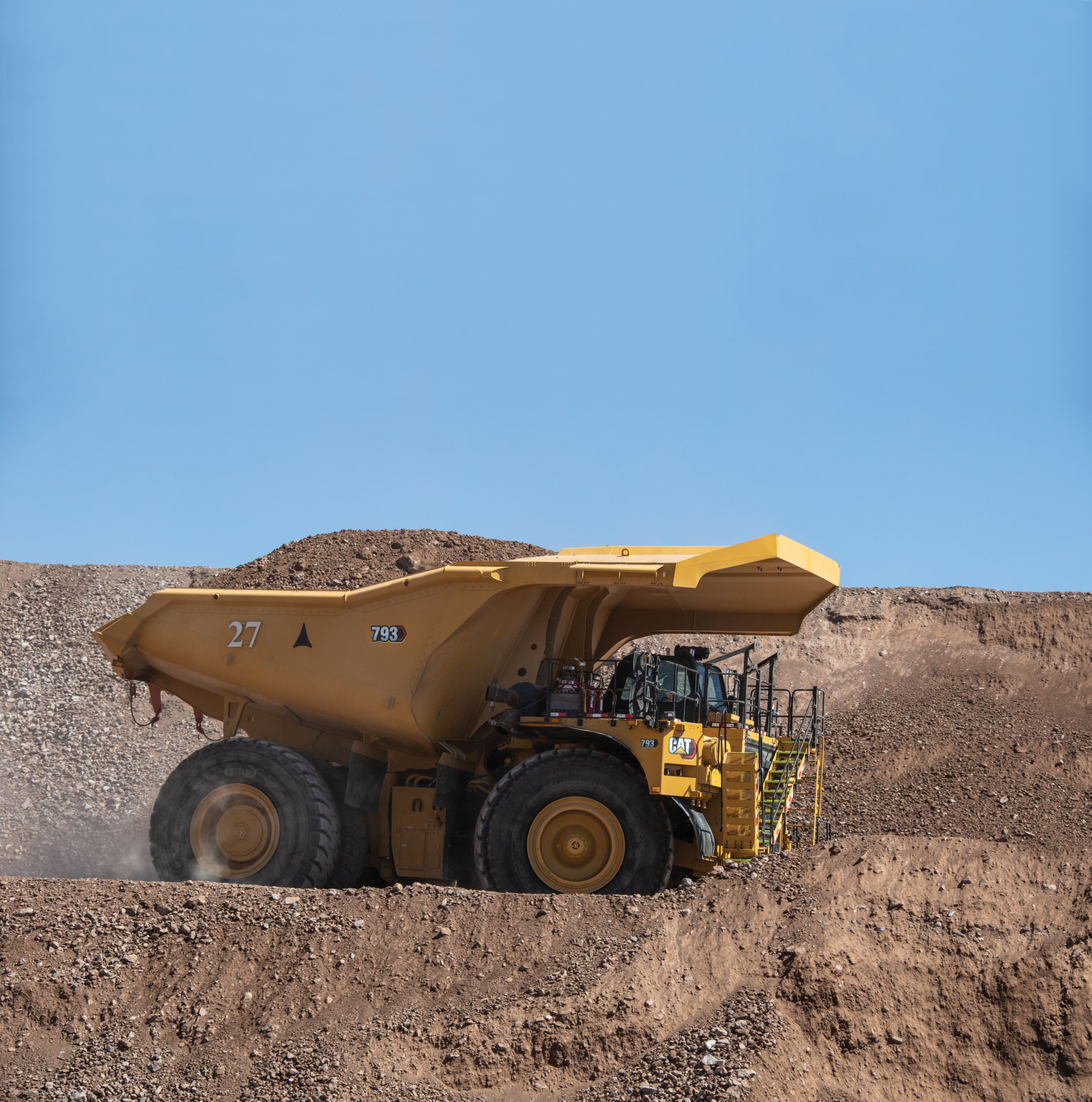

Engine
|
Bore
|
7 in
|
|
Displacement
|
5187 in³
|
|
Emissions Rating
|
Fuel Optimized
|
|
Engine Model
|
Cat® C175-16
|
|
Gross Power - SAE J1995:2014
|
2650 hp
|
|
Net Power - SAE J1349:2011
|
2529 hp
|
|
Note (1)
|
Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system exhaust system and alternator.
|
|
Note (3)
|
U.S. EPA Tier 4 Final / EU Stage V available for applicable markets.
|
|
Rated Speed
|
1750 r/min
|
|
Stroke
|
9 in
|
Weights - Approximate
|
Body Weight
|
66471 lb
|
|
Chassis Weight
|
295098 lb
|
|
Nominal Rated Payload
|
265 ton (US)
|
|
Note (1)
|
Consult your tire manufacturer for maximum tire load
|
|
Note (2)
|
Chassis weight with full fuel and fluids standard and mandatory attachments hoist body mounting group rims and tires.
|
|
Rated Gross Machine Weight
|
890668 lb
|
Weight Distributions - Approximate
|
Front Axle - Empty
|
51%
|
|
Front Axle - Loaded
|
33%
|
|
Rear Axle - Empty
|
49%
|
|
Rear Axle - Loaded
|
67%
|
Final Drives
|
Differential Ratio
|
1.8:1
|
|
Note
|
Double reduction planetary with full floating axles.
|
|
Planetary Ratio
|
1
|
|
Total Reduction Ratio
|
29
|
Transmission
|
Forward - 1
|
8 mile/h
|
|
Forward - 2
|
10 mile/h
|
|
Forward - 3
|
14 mile/h
|
|
Forward - 4
|
19 mile/h
|
|
Forward - 5
|
26 mile/h
|
|
Forward - 6
|
37 mile/h
|
|
Reverse
|
7 mile/h
|
|
Top Speed - Loaded
|
37 mile/h
|
Tires
|
Note
|
Extended life wheel stations optional.
|
|
Note (1)
|
Quick Change Rims optional
|
|
Note (2)
|
Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.
|
|
Optional Tires
|
813 mm (32 in)
|
|
Standard Tires
|
737 mm (29 in)
|
|
Tires
|
40.00 R57 46/90 R57 50/80 R57
|
Braking System
|
Front Wet Disc Brake Surface Area
|
13907 in²
|
|
Parking Brake
|
Four-corner Multi-disc Spring applied Hydraulically Released
|
|
Rear - Wet Disc Brake Surface Area
|
20861 in²
|
|
Service Brakes
|
Four-Corner Wet Disc Oil Cooled Hydraulically Actuated
|
|
Standards
|
(Service and Secondary) ISO 3450:2011
|
Capacity - HP Body - 100% Fill Factor
|
Heaped (SAE 2:1)*
|
162-190 m3 (212-249 yd3)
|
|
Note (1)
|
Consult your local Cat dealer for body recommendations
|
|
Struck
|
112.6-151 m3 (147-197.5 yd3)
|
Body Hoists
|
Body Lower Time - Float
|
23 s
|
|
Body Power Down - High Idle
|
21 s
|
|
Body Raise Time - High Idle
|
22 s
|
|
Pump Flow - High Idle
|
216 gal/min
|
|
Relief Valve Setting - Raise
|
2955 psi
|
|
Type
|
Twin two-stage hydraulic cylinders with snubbing valve.
|
Suspension
|
Effective Cylinder Stroke - Front
|
12 in
|
|
Effective Cylinder Stroke - Rear
|
7 in
|
|
Rear axle - Oscillation
|
4.9 degrees
|
|
Type
|
Self-contained nitrogen/oil cylinders pin-to-pin mounting top and bottom double shear clevis attachments
|
Service Refill Capacities
|
Brake Hoist System - Includes Tank
|
347 gal (US)
|
|
Cooling System
|
284 gal (US)
|
|
Crankcase
|
82 gal (US)
|
|
Diesel Exhaust Fluid Tank
|
62 gal (US)
|
|
Differential - Final Drives
|
260 gal (US)
|
|
Front Wheels - Each
|
8 gal (US)
|
|
Fuel Tank
|
750 gal (US)
|
|
Fuel Tank - Optional
|
1300 gal (US)
|
|
Steering System - Includes Tank
|
77 gal (US)
|
|
Torque Converter Sump
|
27 gal (US)
|
|
Torque Converter/Transmission System - Including Sump
|
55 gal (US)
|

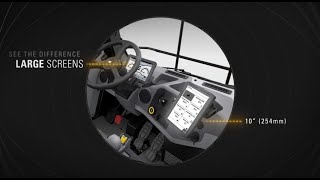

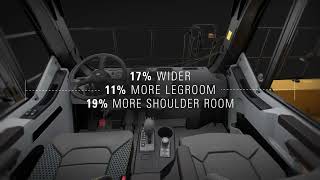

Cab
|
Air Conditioning
|
(HFC - 134A refrigerant) 9.3 kW 31733 BTU/hr
|
|
FOPS Standards
|
FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II for Operator and ISO 13459:2012 Level II for Trainer
|
|
Heater / Defroster
|
36510 Btu/h
|
|
Note
|
Ambient capabilities down to -30C (-22F) for heater/defroster and up to 50C (122F) for air conditioning.
|
|
ROPS Standards (2)
|
ROPS (Rollover Protective Structure) meets ISO 3471:2008 for Operator and ISO 13459:2012 for Trainer
|
Sound
|
Sound Standards (1)
|
The operator sound pressure level 74 dB(A) complies with ISO 6394 and ISO 6396.
|
Steering
|
Steer Angle
|
36 °
|
|
Steering Standards
|
ISO 5010:2019
|
|
Turning Diameter - Front
|
93 ft
|
