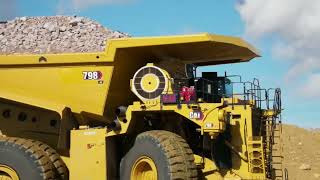

Engine
|
Bore
|
6.9 in
|
|
Displacement
|
5187 in³
|
|
Emissions Rating
|
Fuel Optimized
|
|
Engine Model
|
Cat® C175-16
|
|
Gross Power - SAE J1995
|
3500 hp
|
|
Net Power - SAE J1349
|
3405 hp
|
|
Note (1)
|
Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.
|
|
Note (2)
|
U.S. EPA Tier 4 Final / EU Stage V available for applicable markets.
|
|
Note (3)
|
Additional fuel optimized selectable power ratings: 2312 kW / 3,100 hp
|
|
Optional Gross Power - SAE J1995
|
3100 hp
|
|
Rated Speed
|
1800 r/min
|
|
Stroke
|
8.7 in
|
Engine - High Altitude Only
|
Bore
|
6.9 in
|
|
Displacement
|
6469 in³
|
|
Emissions Rating
|
Fuel Optimized
|
|
Engine Model
|
Cat® C175-20
|
|
Gross Power SAE J1995:2014
|
4150 hp
|
|
Net Power - SAE J1349:2011
|
4000 hp
|
|
Note 1
|
Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.
|
|
Note 2
|
Additional fuel optimized selectable power rating: 2983 kW / 4,000 hp
|
|
Rated Speed
|
1750 r/min
|
|
Stroke
|
8.7 in
|
Weights - Approximate
|
Body Weight Range
|
38 833 - 43 275 kg (85,611 - 95,406 lb)
|
|
Chassis Weight
|
453826 lb
|
|
Nominal Rated Payload
|
410 ton (US)
|
|
Note (1)
|
Consult your tire manufacturer for maximum tire load.
|
|
Note (2)
|
Chassis weight with 100% fuel, hoist, body mounting group, rims, and tires.
|
|
Note (3)
|
Body weight varies depending on how body is equipped.
|
|
Rated Gross Machine Weight
|
1375000 lb
|
Weight Distributions - Approximate
|
Front Axle - Empty
|
47 %
|
|
Front Axle - Loaded
|
33 %
|
|
Note
|
Weight distributions optimized with Cat body.
|
|
Rear Axle - Empty
|
53 %
|
|
Rear Axle - Loaded
|
67 %
|
AC Drive System
|
Controls
|
IGBT Inverter Technology, air cooled, pressurized cabinet with filtration
|
|
Cooling System
|
Cat variable speed, hydraulically driven cooling system
|
|
Generator/Alternator
|
Brushless, engine mounted, dual bearing
|
|
Top Speed - Loaded
|
40 mile/h
|
|
Total Reduction Ratio
|
35:01:00
|
|
Wheel Motor
|
Cat high-torque AC induction, rear axle mounted
|
Tires
|
Note (1)
|
Quick Change Rims optional.
|
|
Note (2)
|
Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.
|
|
Rims
|
44" x 63" Rims
|
|
Standard Tires
|
59/80 R63
|
Braking System
|
Dynamic Retarding Power - Continuous
|
5480 hp
|
|
Electric Retarding
|
Radial Grid Design
|
|
Front Wet Disc Brake Surface Area
|
22642 in²
|
|
Load Brake
|
Rear service brakes
|
|
Note
|
Anti-Lock Brake System (ABS) optional with CMD package
|
|
Parking Brakes
|
Four-corner, Multi-disc, Spring Applied, Hydraulically Released
|
|
Rear - Wet Disc Brake Surface Area
|
32730 in²
|
|
Service Brakes
|
Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated
|
|
Standards
|
Service and Secondary: ISO 3450:2011
|
Capacity - HE Body - 100% fill factor
|
Heaped (SAE 2:1)
|
218-276 m³ (285-361 yd³)
|
|
Note
|
Contact your local Cat dealer for body recommendations.
|
|
Struck
|
129-200 m³ (168-261 yd³)
|
Body Hoists
|
Body Lower Time - Float
|
22 s
|
|
Body Power Down- High Idle
|
17.5 s
|
|
Body Raise Time - High Idle
|
21 s
|
|
Note (1)
|
Twin, two-stage hydraulic cylinders mounted outside main frame; double-acting cylinders in both stages.
|
|
Note (2)
|
Power raise in both stages; power down capability in both stages.
|
|
Note (3)
|
Automatic body-lower modulation reduces impact on frame.
|
|
Pump Flow - High Idle
|
257.3 gal/min
|
|
Relief Valve Setting - Raise
|
3029 psi
|
|
Type
|
Twin, two-stage hydraulic cylinders with snubbing valve.
|
Suspension
|
Effective Cylinder Stroke - Front
|
10 in
|
|
Effective Cylinder Stroke - Rear
|
5 in
|
|
Type
|
Self-contained nitrogen/oil cylinders, pin-to-pin mounting, top & bottom double shear clevis attachments
|
Service Refill Capacities
|
Cooling System
|
211 gal (US)
|
|
Crankcase
|
82 gal (US)
|
|
Diesel Exhaust Fluid Tank
|
100 gal (US)
|
|
Final Drive - Each
|
67 gal (US)
|
|
Fuel Tank
|
1300 gal (US)
|
|
Fuel Tank (Tier 4)
|
1200 gal (US)
|
|
Grease Tank
|
90 lb
|
|
Hydraulic System - Including Tank
|
385 gal (US)
|
|
Hydraulic Tank
|
296 gal (US)
|
|
Note (1)
|
DEF Tank only available for U.S. EPA Tier 4 Final / EU Stage V engine option
|
Service Refill Capacities - High Altitude Only
|
Cooling System
|
273 gal (US)
|
|
Crankcase
|
124 gal (US)
|
|
Fuel Tank
|
2000 gal (US)
|
|
Hydraulic System (includes tank)
|
342 gal (US)
|
|
Hydraulic Tank
|
273 gal (US)
|
Cab
|
Air Conditioning
|
HFC - 134A refrigerant: 21,600 Btu/h
|
|
FOPS Standards
|
FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II for Operator and ISO 13459:2012 Level II for Trainer.
|
|
Heater / Defroster
|
24600 Btu/h
|
|
Note
|
Ambient capabilities down to -15C (5F) for heater/defroster and up to 50C (122F) for air conditioning.
|
|
ROPS Standards (1)
|
ROPS (Rollover Protective Structure) meets ISO 3471:2008 for Operator and ISO 13459:2012 for Trainer.
|
Sound
|
Sound Standards
|
The operator sound pressure level, 75 dB(A), measured according to ISO 6394:2008 and ISO 6396:2008.
|
Steering
|
Note
|
Turning Diameter (ISO 7457:1997)
|
|
Steer Angle
|
39 °
|
|
Steering Standards
|
Steering Standards: ISO 5010:2007
|
|
Turning Diameter - Front
|
106.3 ft
|
Dimensions (Approximate)
|
Centerline Front Tire Width
|
23.06 ft
|
|
Centerline of Rear Dual Tire Width
|
19.5 ft
|
|
Dump Clearance - Empty
|
5.72 ft
|
|
Front Axle Clearance - Loaded
|
2.81 ft
|
|
Front Canopy Height - Empty
|
26.01 ft
|
|
Height - Top of ROPS
|
22.1 ft
|
|
Inside Body Width
|
29.44 ft
|
|
Loading Height - Empty
|
25.54 ft
|
|
Note
|
Dimensions listed includes canopy deflectors
|
|
Outside Body/Canopy Width (without rock deflectors)
|
31.62 ft
|
|
Overall Canopy Width (with rock deflectors)
|
33.15 ft
|
|
Overall Height - Body Raised
|
48.85 ft
|
|
Overall Length
|
51.44 ft
|
|
Overall Length (High Altitude only)
|
51.87 ft
|
|
Overall Tire Width - Empty
|
30.27 ft
|
|
Rear Axle - Tail
|
16.07 ft
|
|
Rear Axle Clearance - Loaded
|
2.8 ft
|
|
Wheel Base
|
21.9 ft
|
