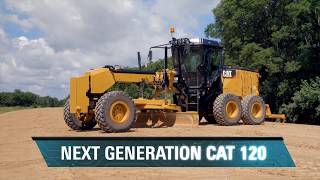

Engine
|
All-Wheel Drive Net Power Range (Tier 4)
|
174 kW
|
|
Bore
|
4.1 in
|
|
Derating Altitude
|
9842.5 ft
|
|
Derating Altitude (AWD)
|
5499 ft
|
|
Displacement
|
427.8 in³
|
|
Emissions
|
U.S. EPA Tier 4 Final/EU Stage V - U.S. EPA Tier 3/EU Stage IIIA
|
|
Engine Model
|
Cat 7.1
|
|
Engine RPM
|
2,000
|
|
Maximum Torque - AWD On
|
611 lb/ft
|
|
Maximum Torque - ISO 9249
|
606 lb/ft
|
|
Net Power - ISO 9249/SAE J1349
|
130 hp
|
|
Net Power Range (Tier 3)
|
130 hp
|
|
Note (1)
|
Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture."
|
|
Note (2)
|
Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
|
|
Note (3)
|
Power as declared per ISO 14396
|
|
Number of Cylinders
|
6
|
|
Standard Capability
|
122 °F
|
|
Stroke
|
5.3 in
|
|
Torque Rise - ISO 9294
|
42%
|
Weights
|
Operating Weight - Typically Equipped
|
35067 lb
|
Moldboard
|
Arc Radius
|
16.3 in
|
|
Blade Height
|
24 in
|
|
Blade Width
|
12 ft
|
|
Cutting Edge
|
6 in
|
|
End Bit
|
6 in
|
|
Throat Clearance
|
4.1 in
|
Air Conditioning System
|
Air Conditioning
|
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent of 2.288 metric tonnes (2.521 tons).
|
Blade Range
|
Blade Tip Range Backward
|
5
|
|
Blade Tip Range Forward
|
40
|
|
Circle Center Shift Left
|
26 in
|
|
Circle Center Shift Right
|
26 in
|
|
Maximum Depth of Cut
|
30.5 in
|
|
Maximum Lift Above Ground
|
16.1 in
|
|
Maximum Shoulder Reach Left
|
69.4 in
|
|
Maximum Shoulder Reach Right
|
76 in
|
|
Moldboard Side Shift Left
|
20.1 in
|
|
Moldboard Side Shift Right
|
26.1 in
|
Service Refill Capacities
|
Circle Drive
|
1.8 gal (US)
|
|
Cooling System
|
14 gal (US)
|
|
Diesel Exhaust Fluid Tank (Tier 4 Only)
|
5 gal (US)
|
|
Engine Crankcase
|
4.8 gal (US)
|
|
Fuel Tank
|
65 gal (US)
|
|
Hydraulic System
|
25.6 gal (US)
|
|
Transmission and Differential
|
9 gal (US)
|
Dimensions
|
Basic Blade Width
|
12 ft
|
|
Length of Machine*
|
387 in
|
|
Maximum Height
|
136.4 in
|
|
Note
|
*Typically equipped with push block and ripper.
|
|
Width
|
102 in
|
|
Width All Wheel Drive (AWD)
|
2551 mm
|
Machine Weight
|
Joystick All-Wheel Drive (AWD) Weight* Tier 4
|
36846 lb
|
|
Joystick Weight* Tier 4
|
35358 lb
|
|
Lever/Steering Wheel All-Wheel drive (AWD) Weight* Tier 4
|
36731 lb
|
|
Lever/Steering Wheel Weight* Tier 4
|
35067 lb
|
|
Note (1)
|
*Typically equipped includes 4267 mm (14 ft) plus blade, tires, push plate, ripper, bottom guard, operator, and full fluids.
|
