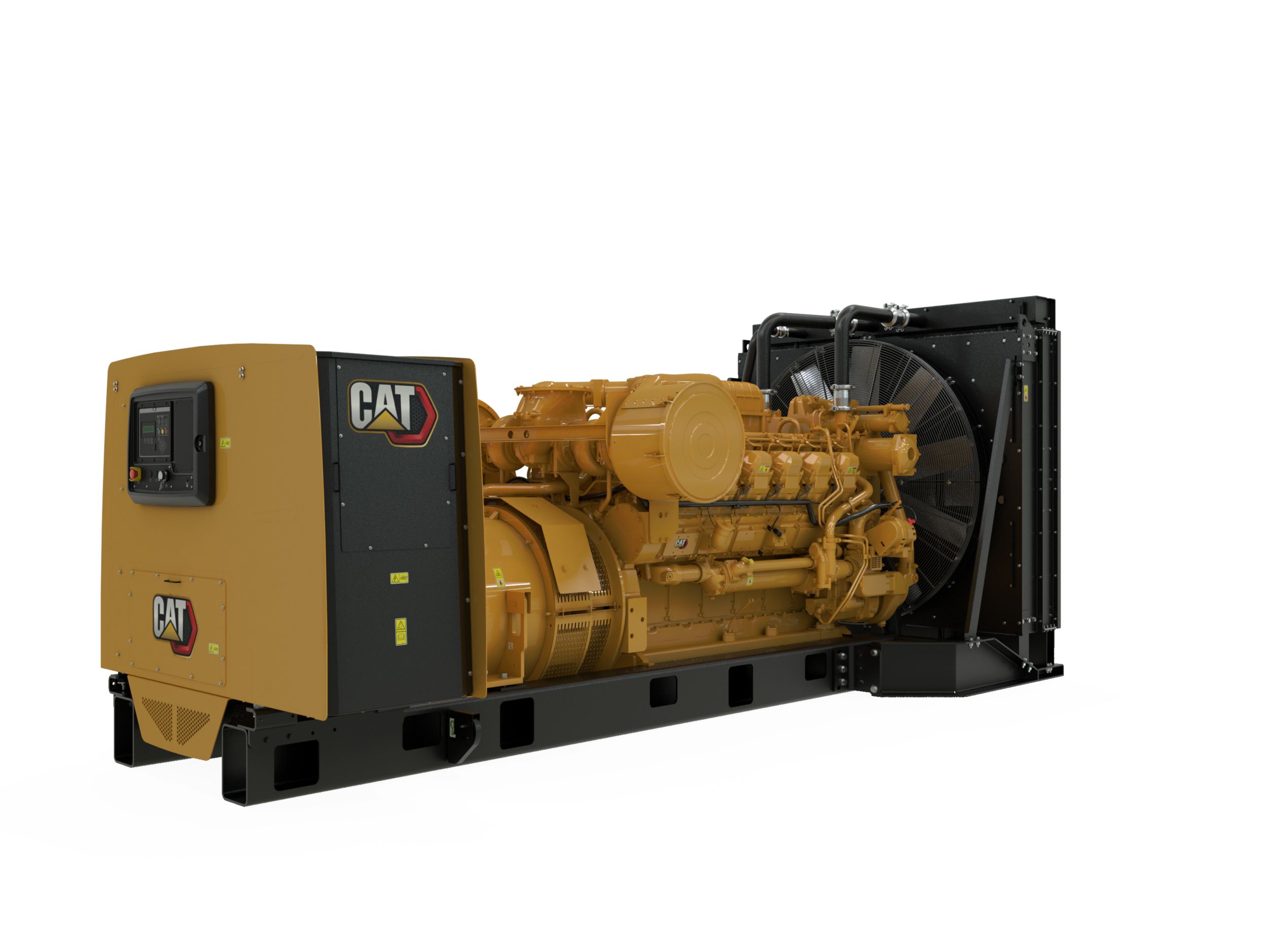

3512B Diesel Generator Set
1230 - 1500 ekW Diesel Generator Set
More Comfort – More Performance – More Versatility
-
- Cat® Generators are fully integrated power systems thaat provide continuous power for data centers, healthcare facilities or anywhere reliable power is required
-
- Industry leading generator technologies
-
- BMEP is 18% lower than other brands which means the Cat generator provides superiort block load capability and durability
-
- Worldwide support with 1,800 dealer branch stores operating in 200 countries. Get extensive post-sale support, including maintenance and repair agreements
Generator Set Specifications
| Duty Cycle | Standby, Mission Critical, Prime, Continuous |
| Emissions/Fuel Strategy | Low Fuel, Low Emissions |
| Frequency | 60 Hz |
| Maximum Rating | 1500 kW |
| Minimum Rating | 1230 kW |
| Prime Power Rating | 1360/1275 kW |
| Speed | 1800 rpm |
| Standby Rating | 1500/1400 kW |
| Voltage | 380 to 480 Volts |
Engine Specifications
| Aspiration | TA |
| Bore | 6.69 in |
| Compression Ratio | 14.0:1 Std 15.5:1 HD |
| Displacement | 51.8 in³ |
| Engine Model | 3512B TA, V-12, 4-Stroke Water-Cooled Diesel |
| Fuel System | Electronic Unit Injection |
| Governor Type | ADEMâ„¢ A3 |
| Stroke | 7.48 in |
Generator Set Dimensions
| Dry Weight - Genset (maximum) | 24959 lb |
| Dry Weight - Genset (minimum) | 24297 lb |
| Height - Maximum | 94.9 in |
| Length - Maximum | 207.8 in |
| Width - Maximum | 90 in |
Download resources
Electric Power Ratings Guide
3512B, 60 Hz, 1400 ekW Standby/MC, 1275 ekW Prime, Low Fuel Consumption or Low Emissions Spec Sheet
3512B, 60 Hz, 1500 ekW Standby/MC, 1360 ekW Prime, 1230 ekW Cont., Low Fuel Consumption or Low Emissions Spec Sheet
3512B, 60 Hz, 1275 ekW, Prime-DCP, Low Fuel Consumption or Low Emissions Spec Sheet
3512B, 60 Hz, 1360 ekW, Prime-DCP, Low Fuel Consumption or Low Emissions Spec Sheet
