C175-16 Generator Set
2500 - 3365 ekW Diesel Generator Set
More Comfort – More Performance – More Versatility
-
Over 20,000,000 Operating hours
at Global locations
-
Over 3000 units
In the field
-
Highest Rated Tier 4 Product
Available on the market
Generator Set Specifications
| Duty Cycle | Standby, Mission Critical, Prime, Continuous |
| Emissions/Fuel Strategy | Low Fuel, Tier 2 |
| Frequency | 60 Hz |
| Maximum Rating | 3365 ekW |
| Minimum Rating | 2500 ekW |
| Prime Power Rating | 3115(no fan)/3000/2825(no fan)/2725 ekW |
| Speed | 1800 RPM |
| Standby Rating | 3365(no fan)/3250/3100(no fan)/3000 ekW |
| Voltage | 480 to 13800 Volts |
Engine Specifications
| Aspiration | Turbo Aftercooled |
| Bore | 6.89 in |
| Compression Ratio | 16.7:1 |
| Displacement | 6456.31 in³ |

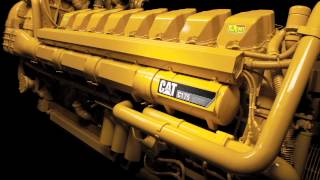

| Engine Model | C175-16 SCAC, V-16, 4-Stroke Water-Cooled Diesel |
| Fuel System | Common Rail |
| Governor Type | ADEM� A4 |
| Stroke | 8.66 in |
Generator Set Dimensions
| Dry Weight - Genset (maximum) | 57774 lb |
| Dry Weight - Genset (minimum) | 42750 lb |
| Height - Maximum | 134.2 in |
| Height - Minimum | 86.9 in |
| Length - Maximum | 330.6 in |
| Length - Minimum | 250.9 in |
| Width - Maximum | 124.3 in |
| Width - Minimum | 82.7 in |
Download resources
Electric Power Rating Guide
C175-16, 60 Hz, 3000 ekW Standby/MC.2725 ekW Prime, 2500 ekW Cont., Low Fuel Consumption (with fan) Spec Sheet
C175-16, 60 Hz, 3000 ekW Standby/MC.2725 ekW Prime, 2500 ekW Cont., U.S. EPA Stationary Emergency (Tier 2) (with fan) Spec Sheet
C175-16, 60 Hz, 3100 ekW Standby/MC, 2825 ekW Prime, 2600 ekW Cont., Low Fuel Consumption (without fan) Spec Sheet
C175-16, 60 Hz, 3100 ekW Standby/MC, 2825 ekW Prime, 2600 ekW Cont., U.S. EPA Stationary Emergency (Tier 2) (without fan) Spec Sheet
C175-16, 60 Hz, 3250 ekW Standby/MC, 3000 ekW Prime, U.S. EPA Stationary Emergency (Tier 2) (with fan) Spec Sheet
C175-16, 60 Hz, 3365 ekW Standby/MC, 3115 ekW Prime, U.S. EPA Stationary Emergency (Tier 2) (without fan) Spec Sheet
C175-16, 60 Hz, 2725 ekW, Prime-DCP, U.S. EPA Stationary Emergency Use Only (Tier 2) (with fan) Spec Sheet
C175-16, 60 Hz, 2725 ekW, Prime-DCP, Low Fuel Consumption (with fan) Spec Sheet
C175-16, 60 Hz, 2825 ekW, Prime-DCP, U.S. EPA Stationary Emergency Use Only (Tier 2) (without fan) Spec Sheet
C175-16, 60 Hz, 2825 kVA, Prime-DCP, Low Fuel Consumption (without fan) Spec Sheet
C175-16, 60 Hz, 3000 ekW, Prime-DCP, U.S. EPA Stationary Emergency Use Only (Tier 2) (with fan) Spec Sheet
C175-16, 60 Hz, 3115 ekW, Prime-DCP, U.S. EPA Stationary Emergency Use Only (Tier 2) (without fan) Spec Sheet
