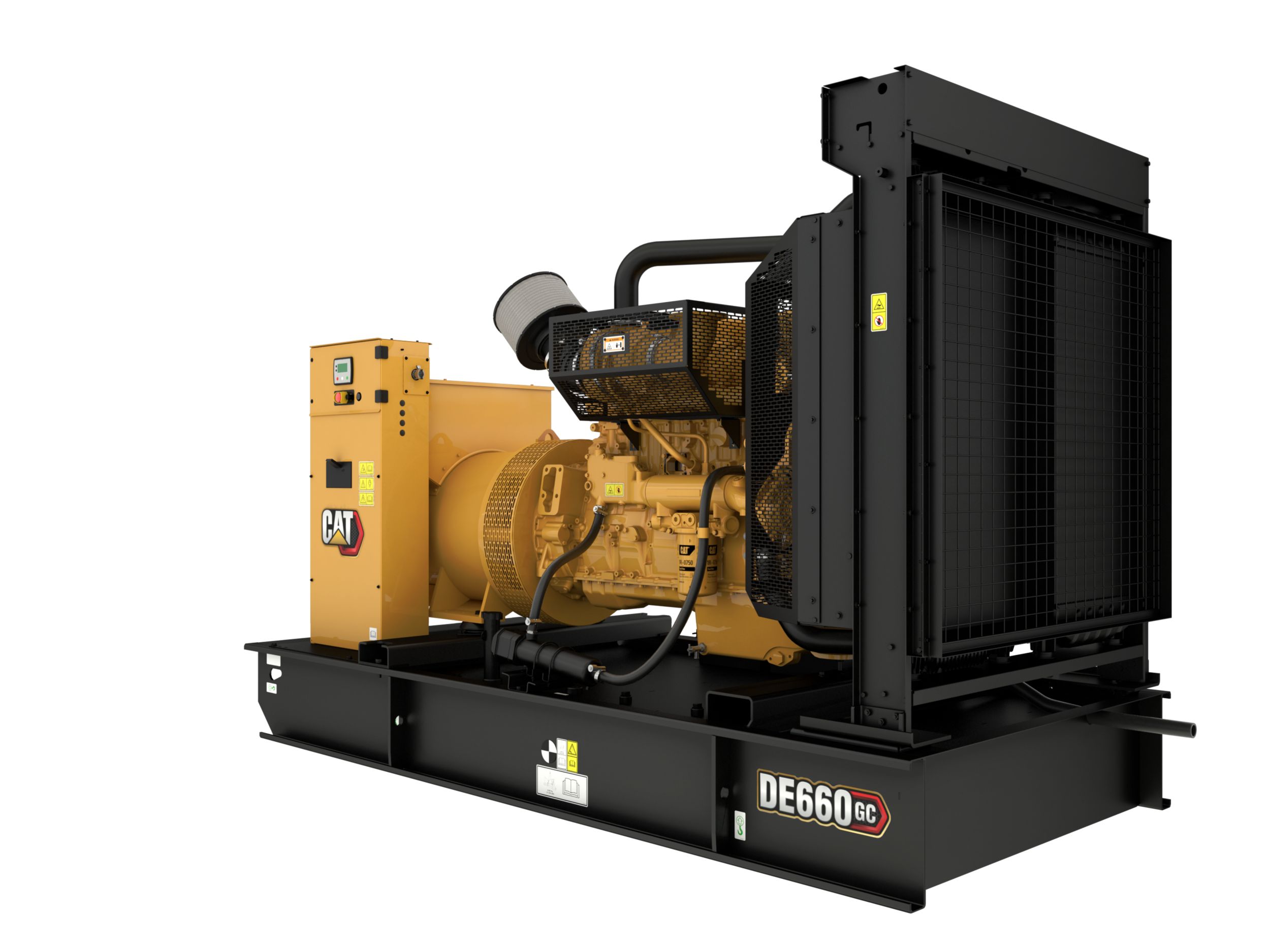

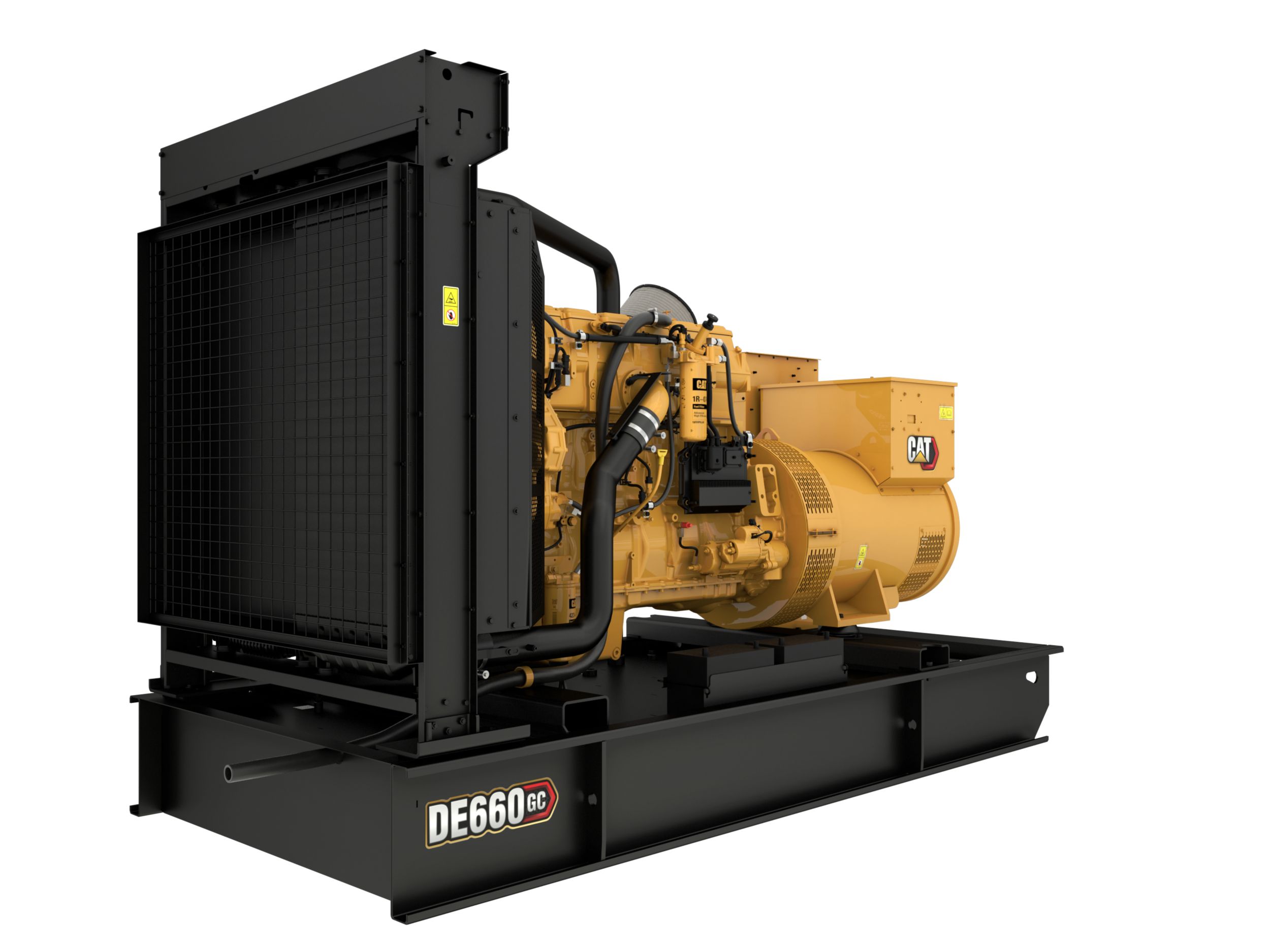

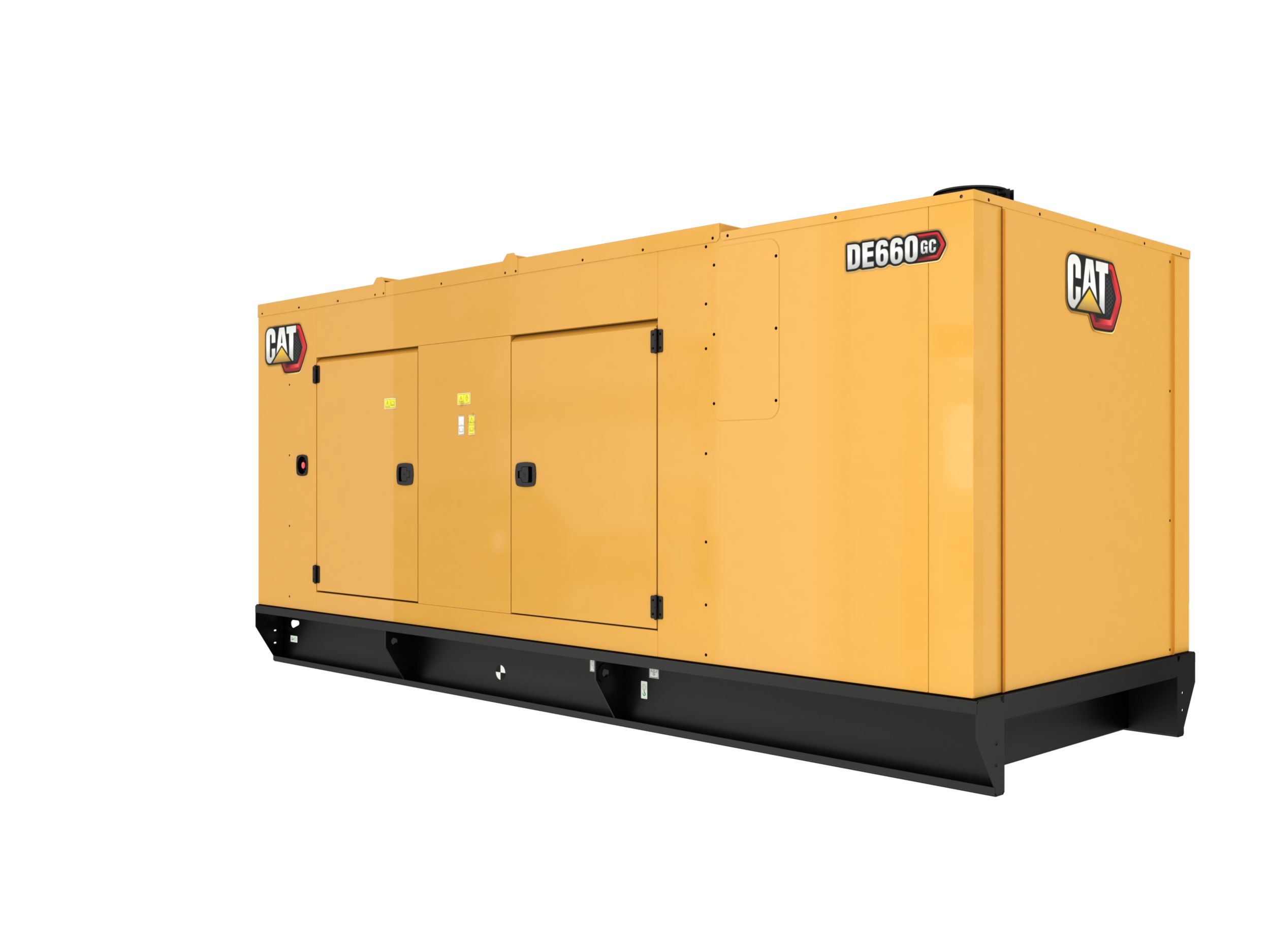

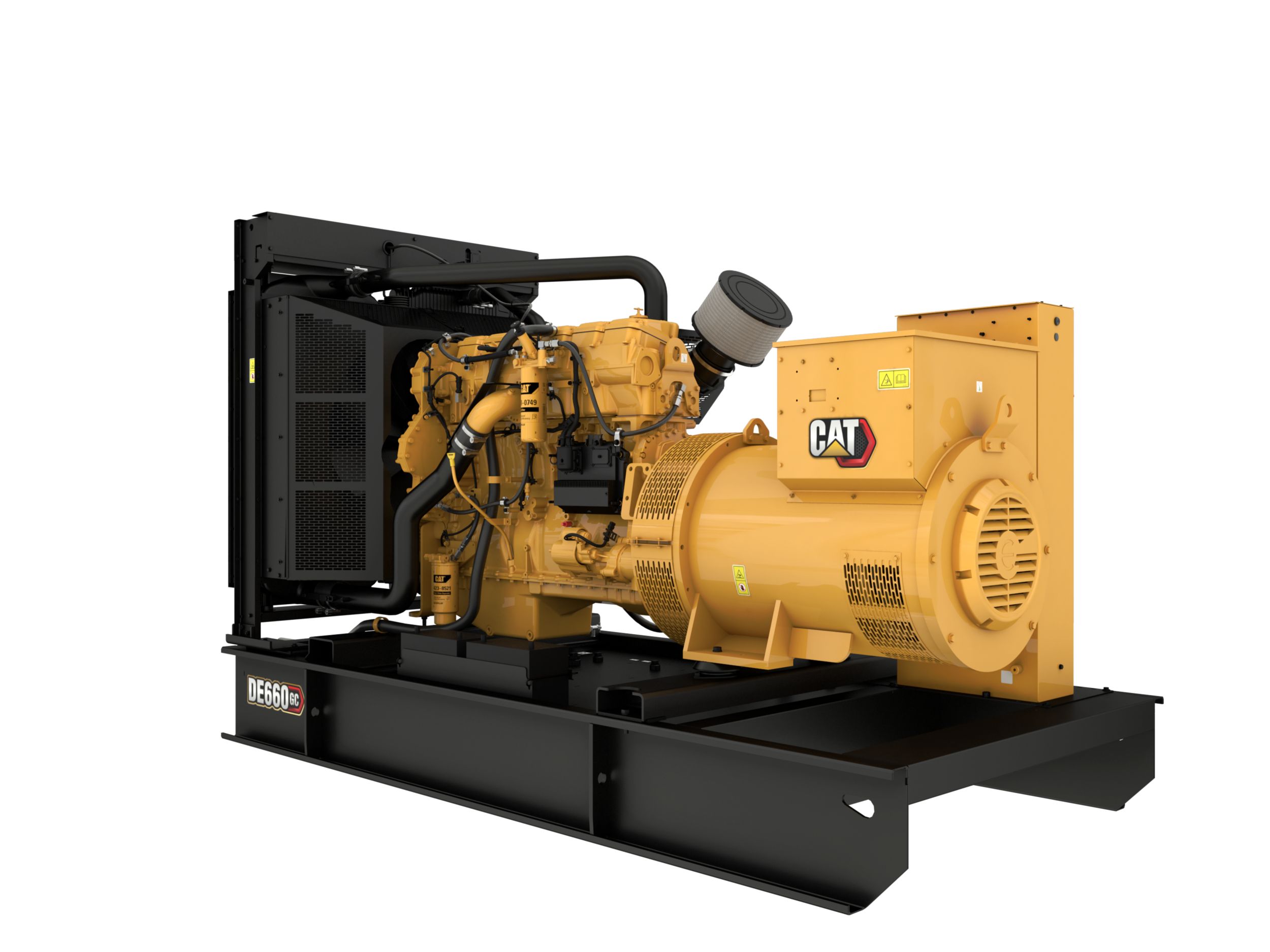

DE660 GC (50 Hz) Generator Set
660 kVA Diesel Generator Set
More Comfort – More Performance – More Versatility
-
Integrated Cat® Product Link™ Control System
- Track Genset Health and Operation Parameters
- Genset Utilization and Performance Tracking
-
Remote Connectivity 24/7/365 Monitoring
Cat Connect option ensures your generator set is always ready to start and perform as expected
-
Optimised for 5% Lower Fuel Consumption
Longer run times between fuel fills; reduced operating costs
Generator Set Specifications
| Duty Cycle | Standby |
| Emissions/Fuel Strategy | Non Regulated |
| Frequency | 50 Hz |
| Maximum Rating | 660 kVA |
| Minimum Rating | 660 kVA |
| Speed | 1500 rpm |
| Voltage | 380 to 415 Volts |
Engine Specifications
| Aspiration | Turbocharged Air-to-Air Aftercooled |
| Bore | 5.4 in |
| Compression Ratio | 16.1:1 |
| Displacement | 928 in³ |
| Engine Model | C15 In-line 6, 4-cycle diesel |
| Fuel System | EUI |
| Governor Type | Adem™A4 |
| Stroke | 6.8 in |
Generator Set Dimensions
| Dry Weight - Genset (maximum) | 8364 lb |
| Height - Maximum | 86.1 in |
| Length - Maximum | 131 in |
| Width - Maximum | 60.6 in |
